Basket Strainer: Detailed Structure and Working Principle

A basket strainer is a widely used filtration device in industries such as water treatment, chemical, food and beverage, metallurgy, and more. Its primary function is to Filter solid particles from liquids, protecting pipelines, pumps, and other equipment from contaminants. With its simple structure and efficient filtration performance, the basket strainer is an indispensable part of industrial filtration systems.

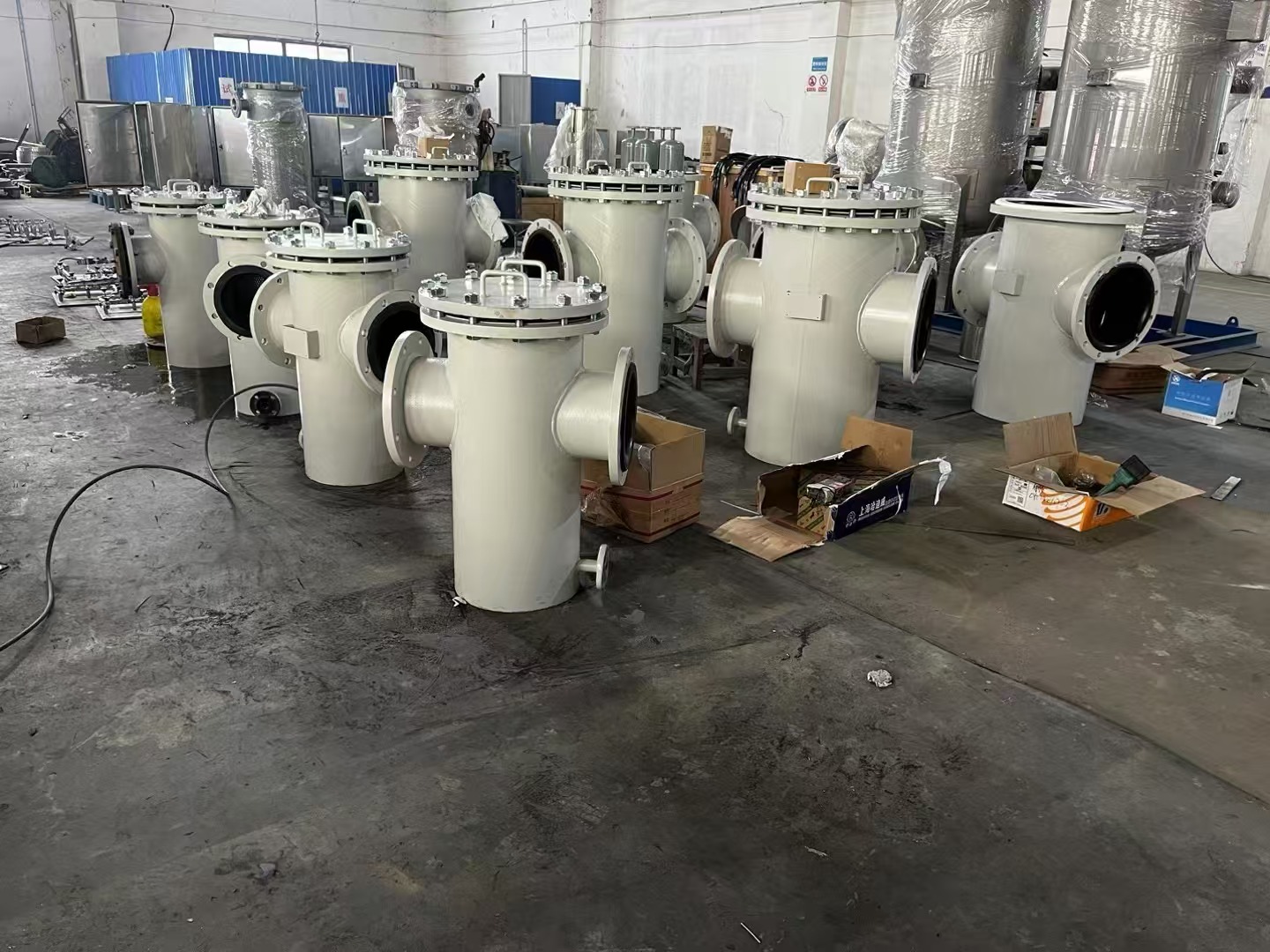

 I. Structure of the Basket Strainer

The basic structure of a basket strainer typically consists of the following key components:

1. Housing

   The housing of the basket strainer is typically made of high-strength materials such as cast steel, stainless steel, or carbon steel, offering excellent corrosion and pressure resistance. The design is usually cylindrical or linear to withstand high pressure and load during operation.

2. Filter Basket

   The filter basket is the core component of the strainer, usually made of metal mesh or other woven materials. Its primary function is to capture large solid particles from the liquid. The filter basket is often removable, making it easier to clean and replace.

3. Inlet and Outlet Connections

   Basket strainers are equipped with multiple inlet and outlet connections to facilitate the flow of liquid. The arrangement of these connections may vary depending on the specific needs of the system to ensure smooth liquid flow and optimal filtration efficiency.

4. Blow-off Valve

   The blow-off valve is used to periodically clean the filter basket of accumulated debris, preventing clogging. Some advanced models may include an automatic blow-off system that clears the filter without manual intervention.

5. Support Structure

   The filter basket is typically supported by a framework that ensures it remains securely in place within the housing. The support structure helps the basket withstand the pressure of the liquid flow and prevents deformation or displacement during operation.

6. Sealing Components

   The sealing parts are made of rubber, silicone, or other corrosion-resistant materials to ensure a leak-free operation of the filter. These seals are crucial for preventing liquid from leaking or bypassing the filtration process.

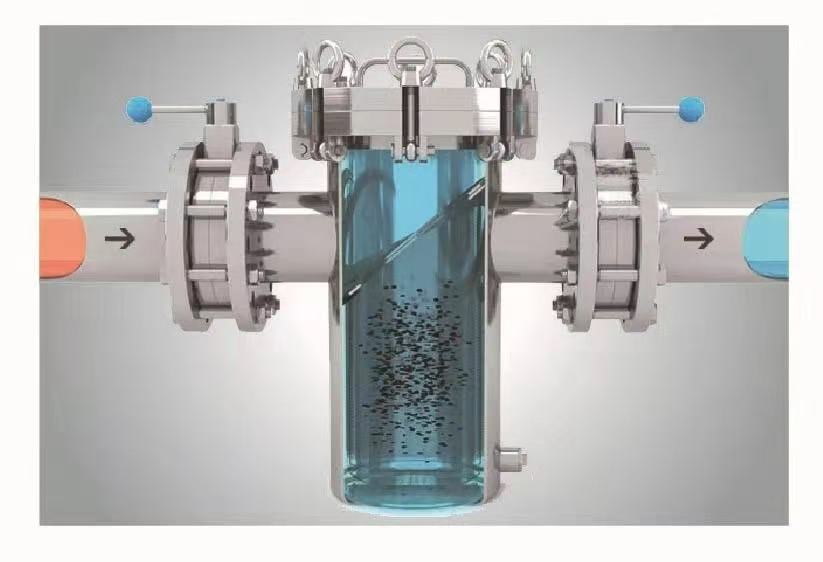

II. Working Principle of the Basket Strainer

The working principle of a  basket strainer is relatively simple. It primarily relies on the basket's mesh structure to physically screen out solid particles from liquids. The process is as follows:

1. Liquid Enters the Filter

   The liquid (such as water, chemical solutions, or oil) first enters the basket strainer through the inlet. During this stage, the larger solid particles, contaminants, and impurities in the liquid begin to come into contact with the filter basket.

2. Particles are Captured by the Filter Basket

   The mesh of the filter basket has uniformly distributed pores. As the liquid passes through the mesh, larger solid particles are trapped and collected by the basket. These particles cannot pass through the mesh, while the smaller liquid molecules flow through.

3. Filtered Liquid Exits the Strainer

   After filtration, the liquid exits the strainer through the outlet, entering downstream pipelines or equipment systems for further use in the production process.

4. Periodic Blow-off and Cleaning

   As filtration continues, the filter basket accumulates more and more particles. Therefore, the strainer must be periodically cleaned by opening the blow-off valve to remove the accumulated debris and maintain efficient filtration. Some automatic models can self-clean without manual intervention, reducing maintenance efforts.

III. Advantages of Basket Strainers

1. Efficient Filtration

   Basket strainers can effectively remove larger particles from liquids, with filtration precision typically ranging from 50 to 2000 microns. Depending on the industry's requirements, users can select the appropriate mesh size to ensure effective filtration.

 2. Simple Structure and Easy Maintenance

   The simple design of the basket strainer makes it easy to operate and maintain. The filter basket is removable, making it easy to clean or replace, which minimizes downtime for maintenance.

 3. Strong Adaptability

   Basket strainers are highly versatile and can be used for filtering various types of liquids. Whether for water treatment, oil filtration, or chemical solution filtration, they provide effective solutions.

 4. Pressure and Corrosion Resistance

   Due to the use of high-quality materials, basket strainers are resistant to both high pressure and corrosion, making them suitable for harsh working conditions and extending the lifespan of the equipment.

 5. Automatic Cleaning System**

   High-end models of basket strainers can be equipped with automatic cleaning functions, which eliminate the need for frequent manual intervention, thus saving time and maintenance costs.

  IV. Applications

 Basket strainers are widely used in various industries, primarily for liquid filtration and the removal of solid particles. Common application areas include:

 1. Water Treatment**

   Basket strainers are used in municipal water treatment, industrial cooling water, and other water filtration applications to remove particles and ensure clean water.

 2. Oil and Chemical Industry

   Basket strainers are used to filter oil products, chemicals, and solutions, removing contaminants to protect equipment and ensure smooth production processes.

 3. Food and Beverage Industry

   Used to filter liquid raw materials in production processes, basket strainers help ensure the purity and quality of food and beverage products.

 4. Metallurgy and Mining

   Basket strainers are used in filtering slurry and metallurgy liquids to protect equipment and ensure smooth operations during ore processing.

 5.Pulp and Paper Industry

   Basket strainers are used to filter solid particles from pulp and paper processes, improving production efficiency and product quality.

 V. Conclusion

 Basket strainers are highly effective, cost-efficient liquid filtration devices that play an essential role in a variety of industries. With their simple yet reliable structure and working principle, basket strainers efficiently remove solid particles from liquids, ensuring equipment protection and smooth operation. Whether in water treatment, chemical production, or food and beverage industries, basket strainers provide valuable filtration solutions that help maintain operational safety and product quality.
