Carbon stainless SX static mixer

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Zerru

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

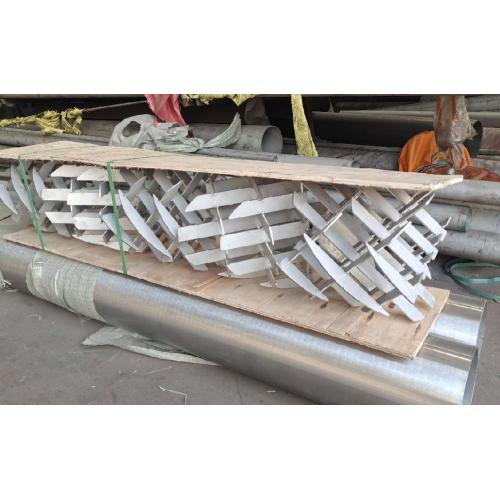

The SX type unit, known as the Carbon Stainless Sx Static Mixer, consists of many X-type units formed by intersecting horizontal bars in a certain pattern. This design is particularly effective for industry static mixers, which are engineered to handle a wide range of industrial processes. Technical feature: The mixing non-uniformity coefficient for these mixers is σ X ≤ 1-5%, ensuring a high level of uniformity in the mixing process.

The Carbon stainless SX Static Mixer is not only suitable for medium to high viscosity liquid-liquid mixtures with a viscosity of ≤ 10 centipoise but also excels in mixing in reaction absorption processes or production of high polymer logistics. For the food industry, food hygiene grade mixers are essential, and this mixer meets those stringent standards, ensuring the safety and quality of food products during processing.

Furthermore, the Gas Dispersion mixer is a specialized version designed to efficiently disperse gases into liquids, which is crucial in various chemical and industrial applications. The reaction process is more effective when used with a larger processing capacity, making these mixers a valuable asset in optimizing production efficiency and output quality.

Typical applications

Alkaline injection process for chlorinated bleached crude oil from high polymer mixed light ketone benzene dewaxed oil paper pulp

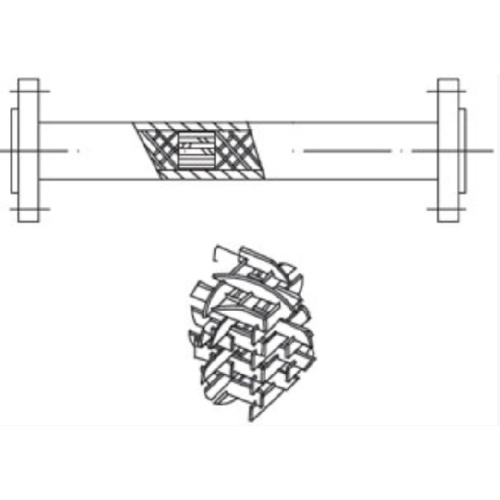

Installation dimensions

型号 Model	Nominal diameter DN(mm)	⽔⼒直径 Hydraulic diameter dH(mm)	流量 flow Q(m³/h)
SX50-12	DN50	12	3.5~7.0
SX65-16	DN65	16	6~12
SX80-20	DN80	20	9~18
SX100-25	DN100	25	14~28
SX150-31	DN150	31	22~44
SX200-50	DN200	50	56~110
SX300-62	DN300	62	88~176
SX300-75	DN300	75	125~250
SX350-87	DN350	87	173~346
