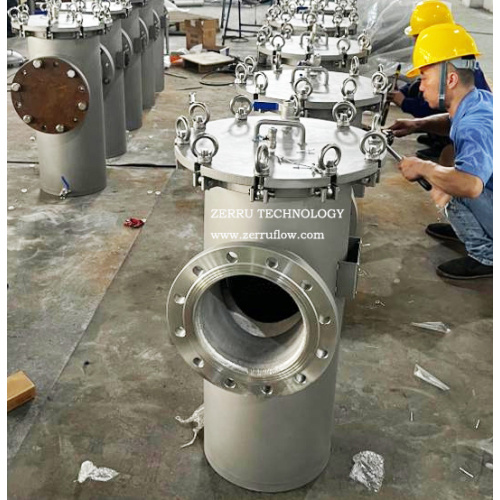

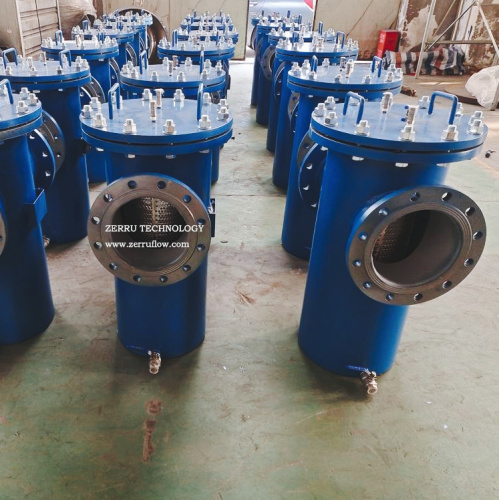

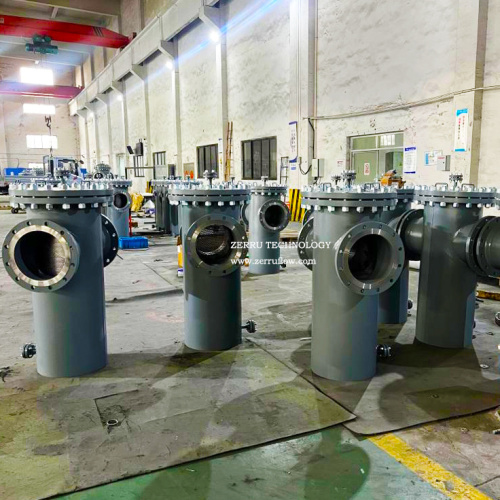

Basket strainer with stainless steel

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: zerru

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

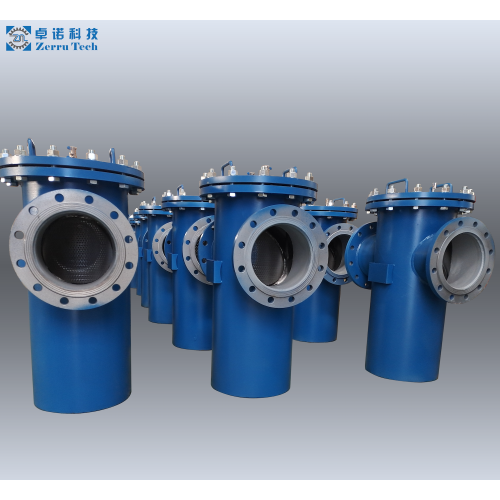

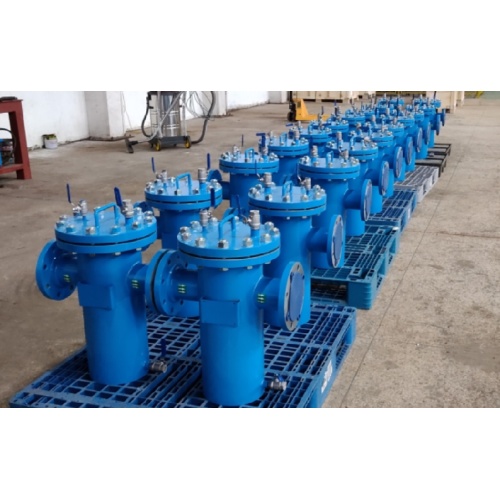

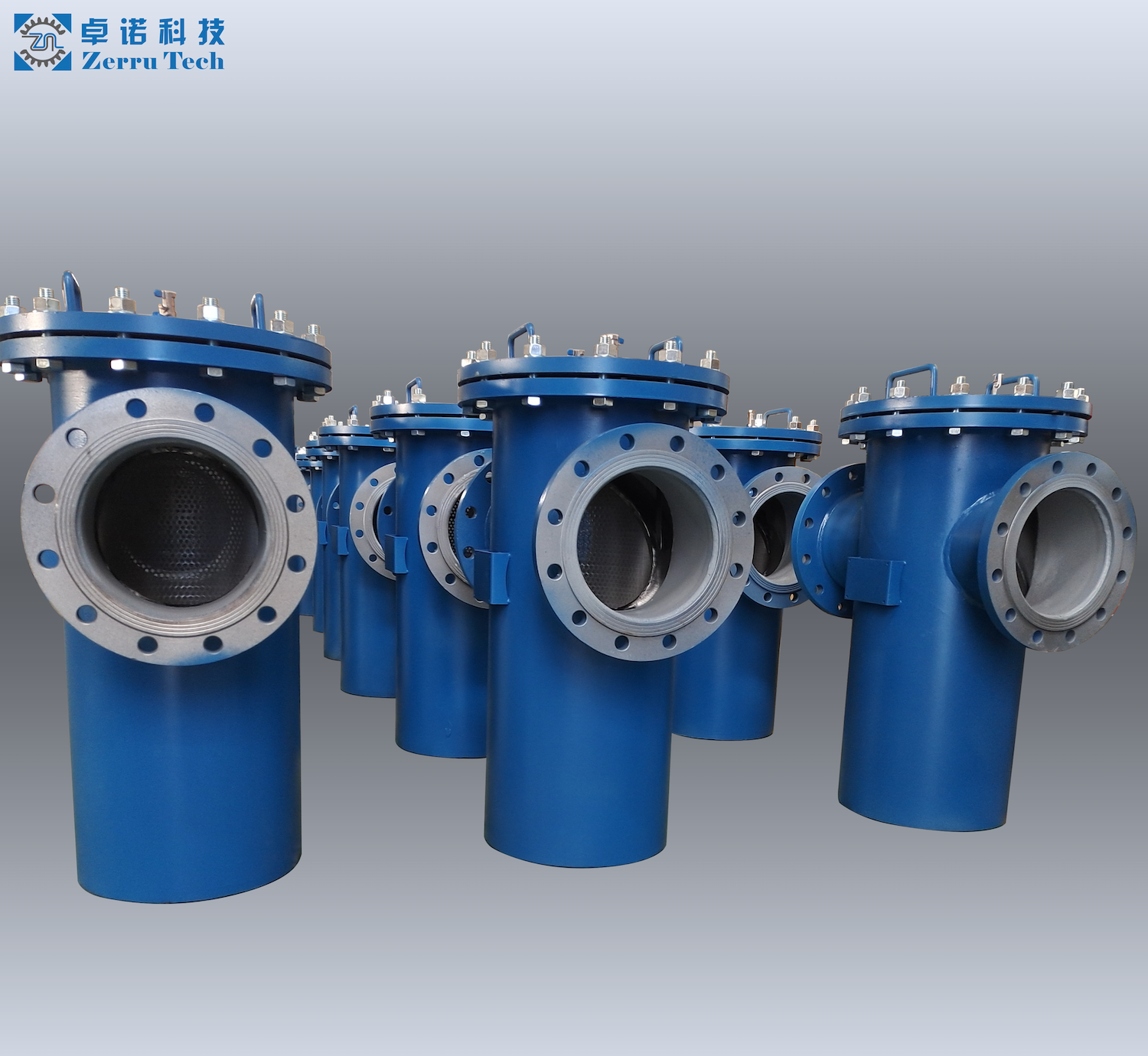

ZRB Basket Filter is a small equipment used to remove small amounts of solid particles from liquids, ensuring fluid purity and system integrity. It is primarily composed of a connecting pipe, main cylinder, flange, flange cover, Filter basket, and fasteners. The filter basket, which can be a Stainless steel Basket Strainer or a Basket Strainer With Stainless Steel, plays a crucial role in this process.

The main cylinder houses the filter basket, which is designed to capture impurities as the fluid flows through. When the fluid enters the filter basket with a certain specification, its impurities are blocked by the fine mesh of the basket, which can be a high-quality Duplex Basket Strainers for double the filtration effectiveness. The clean fluid then passes through the filter basket and is discharged from the filter outlet, maintaining the purity of the liquid in circulation.

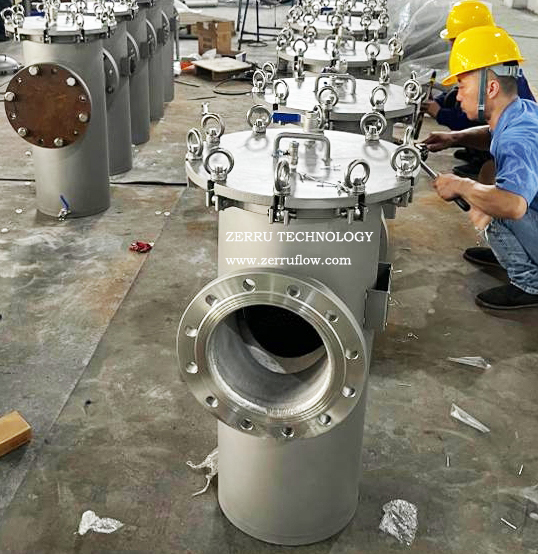

For maintenance and cleaning, the process is straightforward. When cleaning is required, close the inlet and outlet valves of the equipment to prevent fluid flow. Then, unscrew the bottom discharge port of the equipment to drain any residual liquid inside the cylinder. Next, remove the fasteners of the equipment flange cover to access the filter basket. Take out the Stainless steel basket strainer, clean it thoroughly to remove any accumulated debris, and then reinstall it, ensuring a tight seal with the flange cover.

This maintenance procedure helps to prolong the life of the ZRB basket filter and ensures continuous operation with minimal downtime. The use of high-quality materials like stainless steel in the construction of the basket strainer adds to the durability and corrosion resistance of the equipment, making it suitable for a wide range of industrial applications.

Characteristic
There are various forms that can be adjusted according to usage and working conditions. The length, diameter, material, and pressure can be customized according to user requirements;
Compact structure, easy installation and cleaning; The filtration area is large, and the filtration area is about 3-5 times the cross-sectional area of the inlet and outlet; Large amount of pollution absorption;
There are various forms, which can be divided into: straight through flat bottom basket filter, straight through arc bottom basket filter, high and low connection flat bottom basket filter, high and low connection arc bottom, basket filter double filter basket basket filter, jacket insulation basket filter

technical parameter

Type	ZRB
specifications	DN15~DN2000
Nominal pressure	≤42.0MPa
Material of cylinder body	Carbon steel, low alloy steel, austenitic stainless steel, duplex steel, titanium material, nickel alloy, rubber lining
Filter basket material	304、316L、PP、Titanium material
Filtering accuracy	10-1000 mesh
Sealing gasket	Dingqing rubber, polytetrafluoroethylene, EPDM rubber, fluororubber, PTFE wrapped fluororubber
Work title pressure	≤42.0MPa
Applicable temperature range	-196°C~500°C

安装尺寸Dimensions

型号	ZRBⅢ PN5.0
		D1 ( mm)	L	H1 ( mm)	H2 ( mm)	H	Reference weight (kg)	Effective filtration area(m²)	Multiple	B1, B2 in
	DN	D1 ( mm)	( mm)	H1 ( mm)	H2 ( mm)	( mm)	Reference weight (kg)	Effective filtration area(m²)	Multiple	B1, B2 in
Z RB Ⅲ	25	89	220	160	260	480	14.2	0.00362	7	R3/8
	32	89	220	165	270	495	15.5	0.00362	4.5	R3/8
	40	114	280	180	300	550	20.4	0.00572	4.5	R3/8
	50	114	280	180	300	550	22.2	0.00572	3	R1/2
	65	140	330	220	350	650	30.9	0.00961	3	R1/2
	80	168	340	260	400	740	43.5	0.0154	3	R1/2
	100	219	420	310	470	880	64.4	0.0246	3	R3/4
	150	273	500	430	620	1175	102	0.0487	3	R3/4
	200	325	560	530	780	1495	141.5	0.0786	2.5	R3/4
	250	426	660	640	930	1810	230	0. 121	2.5	R3/4
	300	478	750	840	1200	2310	307.3	0. 165	2.3	R3/4
Z RB ⅢJ	25	*108	215	180	350	480	14.5	0.004	8.3	R3/4
	32	*108	235	180	360	495	18.9	0.004	4.9	R3/4
	40	*159	300	210	430	550	25.6	0.0069	5.5	R3/4
	50	*159	300	210	430	550	30.4	0.0069	3.5	R3/4
	65	*159	450	250	490	650	40	0.0133	3.4	R3/4
	80	*273	460	290	530	740	67.7	0.0176	3.5	R3/4
	100	*325	500	345	600	880	113.6	0.0278	3.5	R3/4
	125	*377	580	410	700	1175	157.7	0.0365	3	R3/4
	150	*377	600	470	780		176.4	0.0534	3	R3/4
	200	*426	660	580	930		246.6	0.0882	2.8	R3/4
