ZD-M multi Bag Filter

The upward feeding method through the elbow is more in line with the fluid structure, making it an ideal feature for the Carbon Steel multi-bag Filter. A single seamless sealing ring minimizes the number of accessories, facilitating cleaning and quick replacement of filter bags, which is particularly beneficial in Multi-Bag housings. GB standard manufacturing ensures the quality and reliability of these filters.

The materials include carbon steel, stainless steel, duplex steel, and Hastelloy alloy, providing a range of options for the Carbon Steel multi-bag filter to suit various industrial applications. Filter model and specifications: 1-40 filter bags, allowing for flexibility in the Multi-Bag housing to meet different flow rates and filtration needs.

Select the appropriate sealing ring material based on chemical resistance and temperature range, which is crucial for the performance of the Carbon Steel multi-bag filter. The manual, pneumatic, spring, and hydraulic cover lifting devices are easy to operate, making maintenance of the Multi-Bag housing more efficient.

The quick opening device is suitable for all multi bag filters, including the Carbon Steel multi-bag filter, and can greatly reduce replacement time and it's safer. We can customize products according to customer requirements to meet your special requirements, ensuring that the Multi-Bag housing fits perfectly into your filtration system.

Filter Bag support: Electropolished stainless steel porous support filter basket. Unique three-point filter bag fixing method ensures the connection between the filter bag and the filter housing, which is especially important in a Carbon Steel multi-bag filter, as it has good sealing performance. The side in bottom out design ensures that the liquid can be completely discharged, which is a key feature for efficient operation of the Multi-Bag housing.

◎ Top cover opening method
Hydraulic lifting device - articulated bolt
◎ Spring plate assisted lifting device - articulated bolt
Quick opening top cover
Partial or complete jacket
◎ Corrosion allowance
◎ Inner lining wire mesh and heavy-duty mesh basket
◎ Hastelloy alloy, nickel chromium iron alloy, duplex steel
(If other materials are needed, please consult)
◎ Sanitary or quick connect connectors
(If other materials are needed, please consult)
◎ Internal and external polishing to achieve hygiene level structure
Sealing gasket: fluororubber, nitrile rubber, polytetrafluoroethylene
◎ Filter bag material: polyester, polypropylene, nylon

Polytetrafluoroethylene, fiberglass

Technical parameter
Filter cartridge material	Carbon steel, stainless steel, duplex steel, titanium material, Hastelloy alloy, lined with PTFE, sprayed with PTFE
Sealing ring material	Dingqing rubber
	Polytetrafluoroethylene
	EPDM rubber
	Fluororubber
	wrapped fluororubber
Number of filter bags	1-24 (larger specifications require non-standard design)
Filter bag model	Single bag filters: 1 #, 2 #, 3 #, 4#
	Multi bag filters: 1 #, 2#
Maximum operating pressure	1.0MPa=10bar=150PSI
Design temperature range	Carbon steel: -6~250 ° C
	Stainless steel: -28~298 ° C
Non contact parts with filter media	Carbon steel filter: Carbon steel
	Stainless steel filter: stainless steel
Import and export connections	NPT or flange
surface treatment	Carbon steel: exterior surface painted
	Stainless steel: sandblasting (standard), pickling, polishing
Filter bag sealing	Manual, no manual compression required (standard configuration)
Opening method	Quick opening bolt

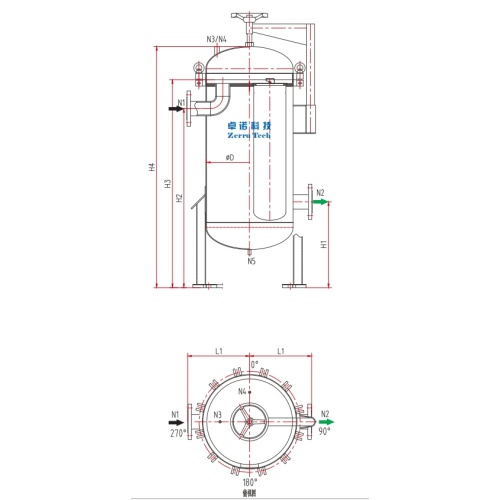

20240607134759 Png

Selection reference

Model	ZD-M2	ZD-M2	ZD-M3	ZD- M3	ZD-M4	ZD-M5	ZD- M6	ZD-M8	ZD-M9	ZD- M10	ZD-M12	ZD-M16	ZD- M18	ZD-M24
caliber	65	80	80	100	100	125	150	150	200	200	250	300	300	300
Maximum selection quantity	50	50	75	75	100	125	150	200	225	250	300	400	450	600
Filter	0.9	0.9	1.35	1.35	1.8	2.25	2.7	3.6	4	4.5	5.4	7.2	8.1	9
ΦD	450	450	500	500	550	600	700	750	800	900	1000	1 100	1200	1300
H1	250	250	250	250	300	300	350	350	350	350	350	350	350	350
H2	920	892	912	875	940	910	955	966	1000	900	970	950	950	947
H3	1130	1120	1126	1117	1180	1180	1246	1260	1345	1245	1375	1405	1410	1407
H4	1300	1282	1297	1290	1377	1384	1486	1505	1600	1626	1690	1740	1766	1800
L1/L2	340/350	345/350	370/373	397/373	418/400	455/423	487/474	512/499	578/554	646/606	666/655	705/706	755/756	805/806
Vent	G1/2"外螺纹（配球阀）External thread (with ball valve)
Discharge outlet	G1/2"外螺纹（配球阀）External thread (with ball valve)
Pressure gauge port	G1/4" External thread (equipped with ball valve and pressure gauge)

Explanation: The above flow rate is the numerical value generated when the working pressure is 0.7MPa, the accuracy is 5um, and the medium is water. The flow rate varies with different pressures, accuracies, and media.
