Carbon Steel Topline bag filter

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
1
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Share:
  • Product Description
Overview
Product Attributes

Brandzerru

Supply Ability & Additional Information

TransportationOcean,Land,Air

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets

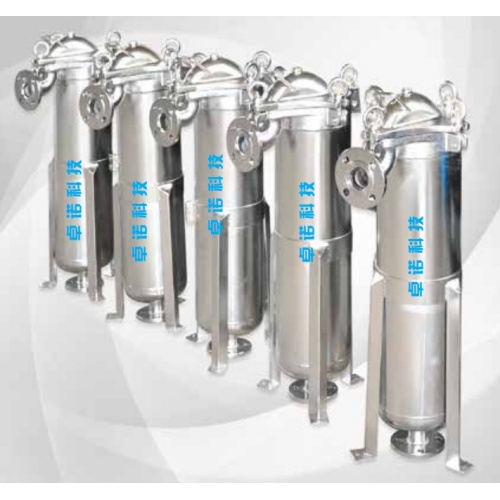

Suitable for all demanding filtration requirements, the Zhuo Nuo high-performance ZD-S-3 Filter ensures high-quality filtration results through advanced design, suitable for strict application requirements, and has excellent color filtration performance. The Carbon Steel Topline Bag Filter is a robust choice for heavy-duty applications, offering a high level of corrosion resistance and durability . High reliability and convenient operation are perfectly unified in the single bag filter housing, which can be a Topline housing filter or a Sideline bag filter, depending on the specific needs . The side inlet of the ZD-S-3 model is designed to filter the body from the top lung, reducing the amount of water that has not been filtered. This design is also found in the Topline bag filter, which makes it very convenient to replace the Filter Bag and provides an excellent sealing effect . The Heavy duty filter housing, such as the Carbon Steel Topline housing filter, is designed to withstand the rigors of industrial applications, ensuring long-term performance and minimal maintenance .




20240607134649 Png 20240607134632 Png


Product advantages

Through top entry and top cover structure

Making the replacement of filter bags very easy and fast

Top cover fully compressed and sealed

Sealed without any side leaks
Rotating ring head bolt

Easy to use and sturdy quick closing device

Punched filter basket for electrolytic polishing treatment

The best filter bag support and easy to clean

Adjustable height tripod





surface treatment

Glass bead sandblasting (standard); Polishing; Sanitary polishing



material

Shell material:

Carbon steel, stainless steel, duplex steel
Hastelloy alloy, titanium material, lining

Sealing gasket: silicone, nitrile rubber, PTFE rubber

Filter bag material: polyester, polypropylene, nylon
Polytetrafluoroethylene, fiberglass



20240607134732 Png 20240607134718 Png



Technical parameter
Filter cartridge material Carbon steel, stainless steel, duplex steel, titanium material, Hastelloy alloy, lined with PTFE, sprayed with PTFE
Sealing ring material Dingqing rubber
  Polytetrafluoroethylene
  EPDM rubber
  Fluororubber
  wrapped fluororubber
Number of filter bags 1-24 (larger specifications require non-standard design)
Filter bag model Single bag filters: 1 #, 2 #, 3 #, 4#
  Multi bag filters: 1 #, 2#
Maximum operating pressure 1.0MPa=10bar=150PSI
Design temperature range Carbon steel: -6~250 ° C
  Stainless steel: -28~298 ° C
Non contact parts with filter media Carbon steel filter: Carbon steel
  Stainless steel filter: stainless steel
Import and export connections NPT or flange
surface treatment Carbon steel: exterior surface painted
  Stainless steel: sandblasting (standard), pickling, polishing
Filter bag sealing Manual, no manual compression required (standard configuration)
Opening method Quick opening bolt

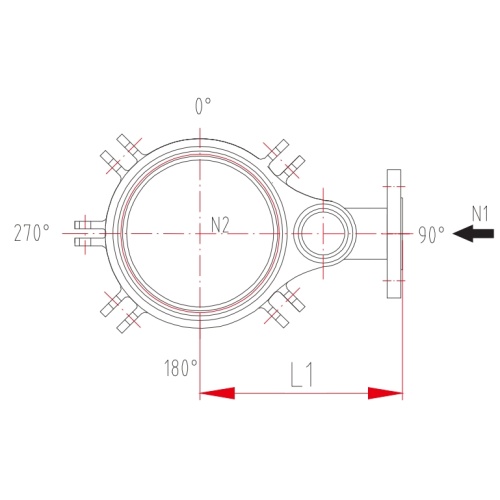

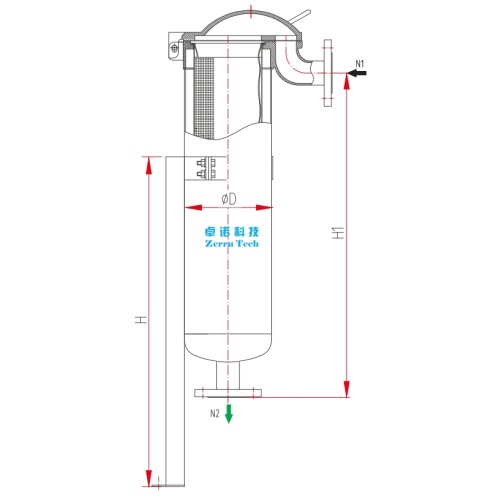

Selection reference
Model Filter Model Flow rate M3/h Body height mm Total height mm filter diameter mm filter bag diameter mm inlet and outlet
ZD-S-3-1 1 20 500 720 Φ219 Φ170 1"~4"
ZD-S-3-2 2 40 700 1070 Φ219 Φ170 1"~4"
