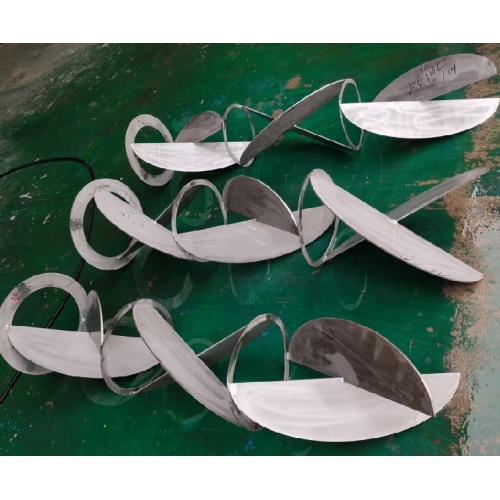

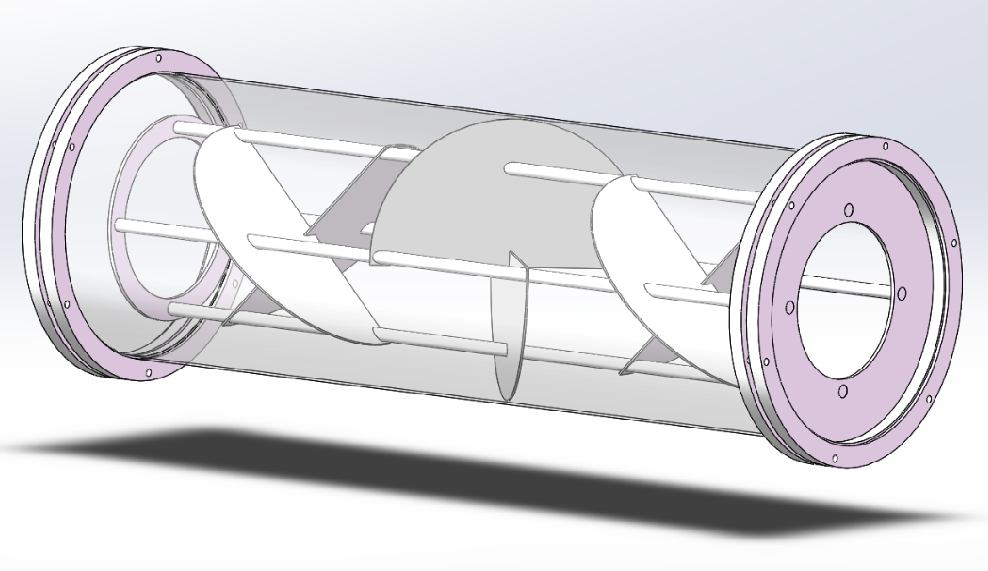

The mixing unit of the Sd Static Mixer With Pp (Plastic Static Mixer) is composed of vertically intersecting blades, designed to create a polished static mixer that ensures a low pressure drop mixer. These blades are arranged in a way that multiple units are connected to form D-shaped units, forming a staggered multi-chamber state that is particularly effective for emulsification processes. The SD type static mixer can be used for a variety of applications, including emulsification, where it can disperse droplets to as small as 10um, which is crucial for achieving a non-uniformity coefficient in general mixing processes.

This low pressure drop mixer is not only efficient but also versatile, making it suitable for a wide range of processes such as mixing, reaction, absorption, injection molding, color matching, and heat transfer across various sectors. These sectors include chemical, petroleum, pharmaceutical, food, fine chemical, environmental protection, synthetic fibers, and mining. The polished static mixer is especially well-suited for high viscosity media with small flow rates and impurities or where the viscosity is ≤ 103 CP. Its plastic construction makes it a durable and cost-effective choice for many industrial applications.

Installation dimensions

型号 Model	Nominal diameter DN(mm)	⽔⼒直径 Hydraulic diameter dH(mm)	流量 flow Q(m³/h)
SD10-5	DN10	5	0.15~0.3
SD15-7.5	DN15	7.5	0.3~0.6
SD20-10	DN32	10	0.6~1.2
SD25-12.5	DN20	12.5	0.9~1.8
SD32-16	DN40	16	1.4~3.2
SD40-20	DN25	20	2.2~4.5
SD50-25	DN50	25	3.5~7.0
SD65-32.5	DN65	32.5	5.9~12
SD80-40	DN80	40	9~18
SD100-50	DN100	50	14~28
SD125-62.5	DN125	62.5	22~44
SD150-75	DN150	75	31~64
SD200-100	DN200	100	56~110
SD250-125	DN250	125	88~177
SD300-150	DN300	150	127~255
SD350-175	DN350	175	173~346
SD400-200	DN400	200	226~452
SD500-250	DN500	250	353~706
