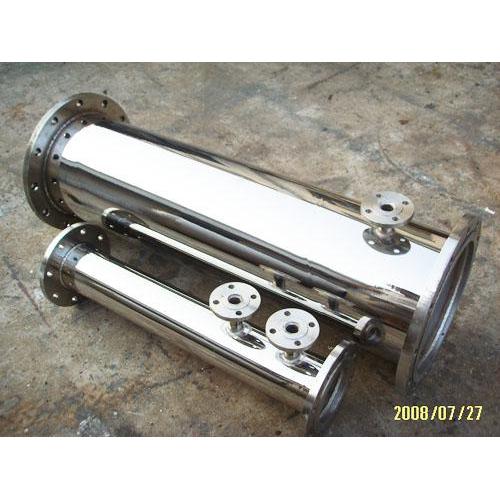

Super stainless SD static mixer

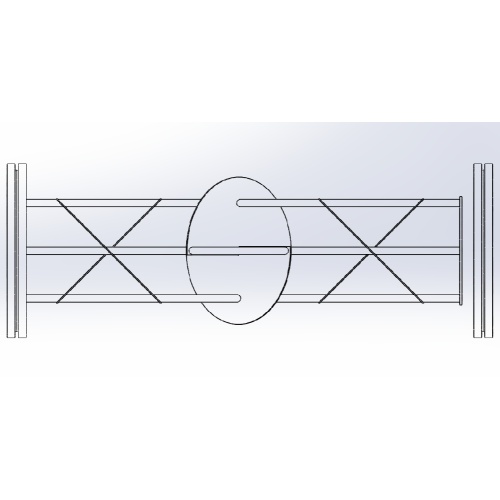

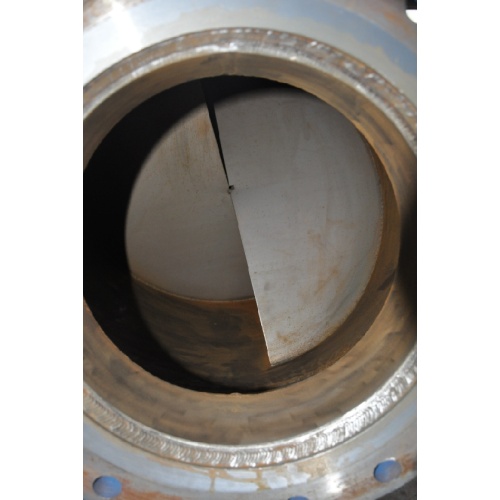

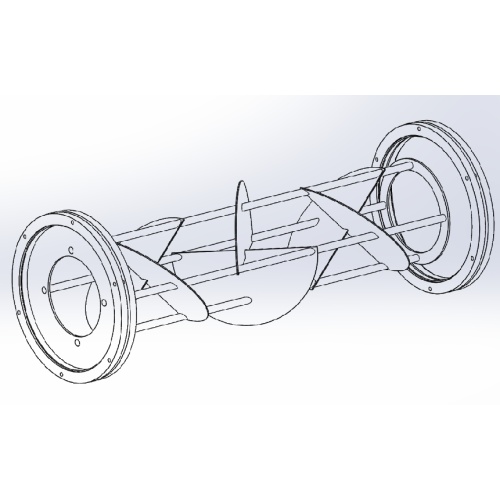

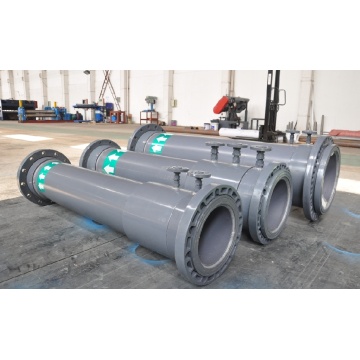

The mixing unit of the Super Stainless Sd Static Mixer type Static Mixer is composed of vertically intersecting blades, and multiple units are connected to form D-shaped units, forming a staggered multi chamber state. This design is particularly suitable for high viscosity media with small flow rates and impurities or viscosity ≤ 103 CP. The inline plastic static mixer can be used for emulsification, and during the process, it can disperse the droplets to 10um, which is used for the non-uniformity coefficient in general mixing processes. The PVC static mixer is suitable for mixing, reaction, absorption, injection molding, color matching, heat transfer, and other processes in sectors such as chemical, petroleum, pharmaceutical, food, fine chemical, environmental protection, synthetic fibers, and mining.



Installation dimensions



型号 Model	Nominal diameter DN(mm)	⽔⼒直径 Hydraulic diameter dH(mm)	流量 flow  Q(m³/h)
SD10-5	DN10	5	0.15~0.3
SD15-7.5	DN15	7.5	0.3~0.6
SD20-10	DN32	10	0.6~1.2
SD25-12.5	DN20	12.5	0.9~1.8
SD32-16	DN40	16	1.4~3.2
SD40-20	DN25	20	2.2~4.5
SD50-25	DN50	25	3.5~7.0
SD65-32.5	DN65	32.5	5.9~12
SD80-40	DN80	40	9~18
SD100-50	DN100	50	14~28
SD125-62.5	DN125	62.5	22~44
SD150-75	DN150	75	31~64
SD200-100	DN200	100	56~110
SD250-125	DN250	125	88~177
SD300-150	DN300	150	127~255
SD350-175	DN350	175	173~346
SD400-200	DN400	200	226~452
SD500-250	DN500	250	353~706
