Bag filter with V-clamp closure

ZD-S-S Bag Filter with V-clamp closure

High-quality, economical Filter.It is a highly cost-effective filter for applications of low pressure and non-dangerous goods.

The Bag filter with V-clamp closure is a highly efficient and convenient dust filtration system designed for quick and easy maintenance. These filters are equipped with a V-Clamp Closure Bag Filter Housing, which allows for rapid assembly and disassembly, making the process of changing filter bags a simple task. The Quick lock bag filter is a standout feature of this system, as it significantly reduces the downtime required for filter maintenance.

The V-Clamp Bag Housings are engineered to provide a secure seal, ensuring that no dust escapes during the filtration process. This design is not only user-friendly but also enhances the overall performance and safety of the system. The V-clamp closure mechanism is a robust solution that offers a reliable and efficient way to manage dust and particles in various industrial applications, from air purification to process gas cleaning.

In summary, the Bag filter with V-clamp closure, along with the V-Clamp Closure Bag Filter Housing and V-Clamp Bag Housings, represents a state-of-the-art approach to filtration, combining speed, security, and simplicity in a single, effective package.

Product features

Manual opening, V-shaped clamp, no need for any auxiliary tools.
There are four standard sizes suitable for filter bags, 1, 2, 3, and 4 filter bags.
Carbon steel and stainless steel 304316L materials are available.
Polishing or sandblasting treatment, the interior is extremely easy to clean.
Hygienic polishing can meet the demanding requirements of customers.
Standard bag type interfaces and diverse installation forms.
Quick opening ring head bolt, convenient and fast opening and closing.
The installation size can be quickly adjusted according to on-site requirements.

technical standard

Design and manufacturing standard: HG21637-91 Design, manufacturing, and acceptance
Flange standard: GB JB、HG、JIS、DIN、ANSI
Interface form: thread, clamp, flange
Caliber specifications: 1-2 inches
Discharge outlet specification: 1/4 "
Filter Bag models: 1 #, 2 #
Filtering accuracy: 0.5um-800um
Design pressure: ≤ 1.0MPa
Design temperature: ≤ 60 ℃
Surface treatment: sandblasting or polishing inside and outside the shell
Sealing gasket: silicone rubber, nitrile rubber, polytetrafluoroethylene, EPDM
Filter bag material: polyester, polypropylene, nylon
Polytetrafluoroethylene, glass fiber

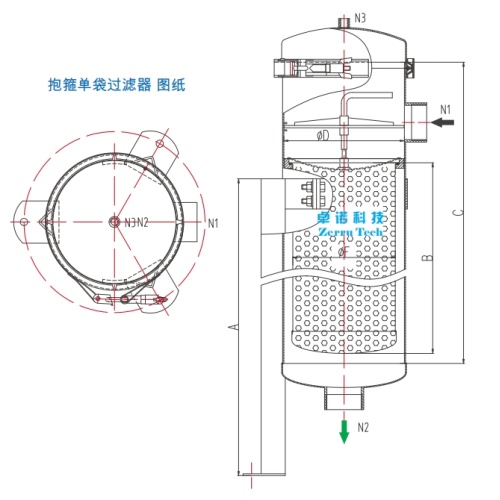

Drawing of Hoop Single Bag Filter
