ZEB Straight Flow Basket Strainer

The ZRB Basket Filter, such as the ZEB Straight Flow Basket Strainer, is a small equipment used to remove small amounts of solid particles from liquids. It is mainly composed of a connecting pipe, main cylinder, flange, flange cover, Filter basket, and fasteners. This type of strainer is designed for straightforward flow, ensuring that the fluid passes through efficiently while capturing impurities. The Stainless Steel Straight Flow Basket Strainer is a variant that offers the additional benefit of corrosion resistance, making it suitable for a wide range of applications where contact with aggressive fluids is expected.

When the fluid enters the filter basket with a certain specification, such as the Inline 3A Strainers, its impurities are blocked, and the clean fluid passes through the filter basket and is discharged from the filter outlet. These 3A Sanitary Strainers are designed to meet the highest standards of hygiene and are commonly used in the food, dairy, and pharmaceutical industries.

When cleaning is required, the process is simple. First, close the inlet and outlet valves of the equipment to stop the flow of fluid. Then, unscrew the bottom discharge port of the equipment to drain the residual liquid inside the cylinder. After that, remove the fasteners of the equipment flange cover to access the filter basket. Whether you are dealing with a simplex Basket Strainer or a more complex model, the maintenance procedure is similar. Take out the filter basket, clean it to remove any accumulated debris, and then reinstall it, ensuring the continued efficiency of the strainer.

The ZRB basket filter, in its various forms such as the ZEB Straight Flow Basket Strainer or the Stainless Steel Straight Flow Basket Strainer, is an essential piece of equipment for maintaining fluid integrity and preventing contamination in industrial processes.

characteristic
There are various forms that can be adjusted according to usage and working conditions. The length, diameter, material, and pressure can be customized according to user requirements;
Compact structure, easy installation and cleaning; The filtration area is large, and the filtration area is about 3-5 times the cross-sectional area of the inlet and outlet; Large amount of pollution absorption;
There are various forms, which can be divided into: straight through flat bottom basket filter, straight through arc bottom basket filter, high and low connection flat bottom basket filter, high and low connection arc bottom, basket filter double filter basket basket filter, jacket insulation basket filter

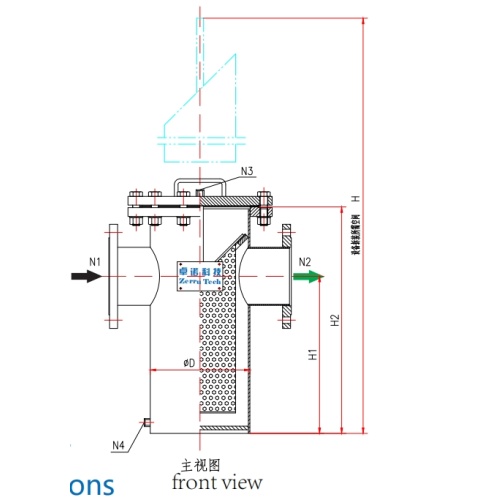

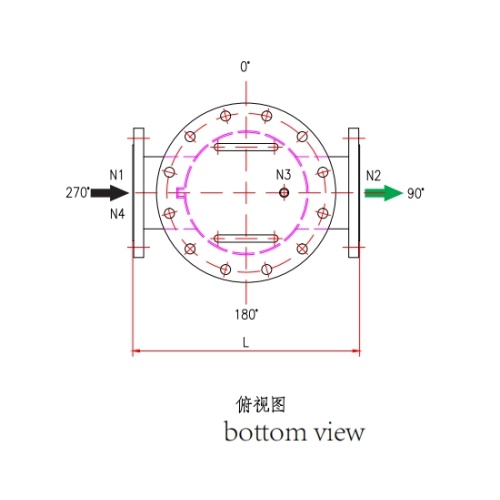

Installation dimensions
