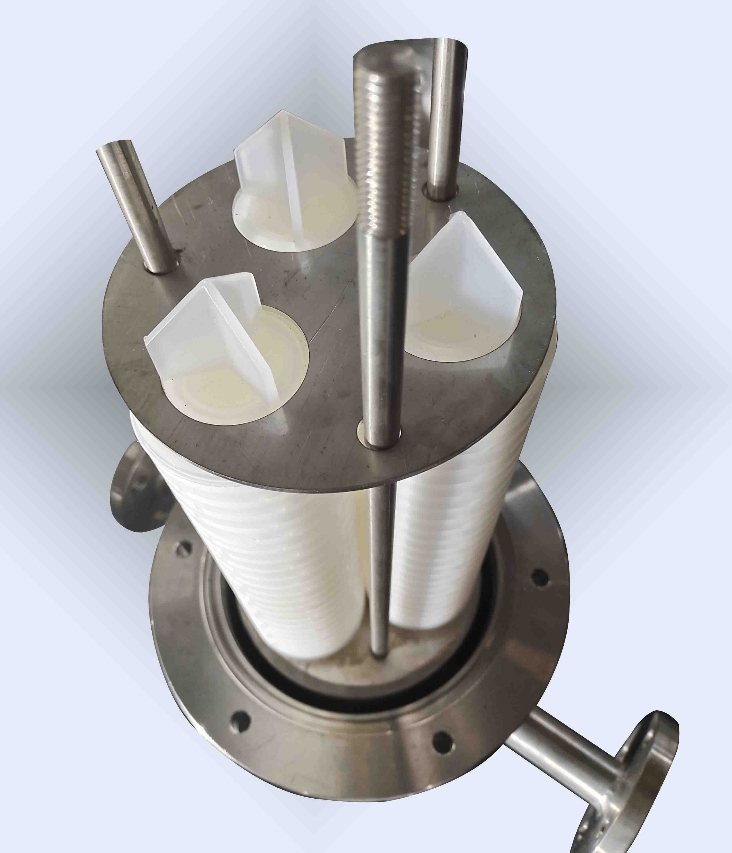

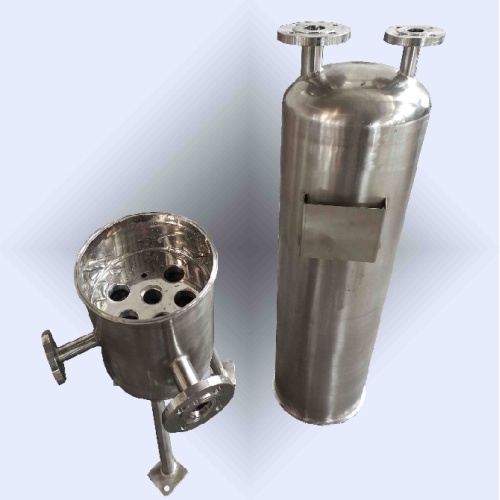

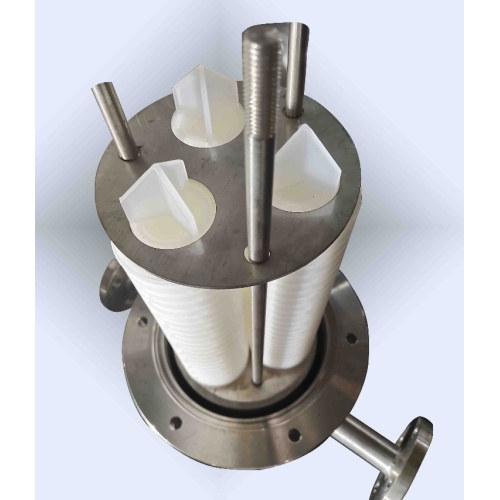

The ZSJ-J02 series cartridges Filter is a versatile system that can accommodate one or multiple microporous Filter Cartridges, making it a standardized product suitable for various applications. Customers can achieve different flow rates by selecting from a range of materials, apertures, lengths, and quantities of cartridges. The filter housings come in Carbon Steel Multi-Cartridges Filter Housing, Stainless Steel Multi-cartridges Filter Housing, and for more demanding applications, Titanium Multi-cartridges Filter Housing. For high flow requirements, the High Flow Multi Cartridge Filter Housing is also available. These filters apply reasonable hydrodynamic techniques to ensure optimal performance.
Technical parameter
drain:DN15~DN50 vent：DN15
Selection reference

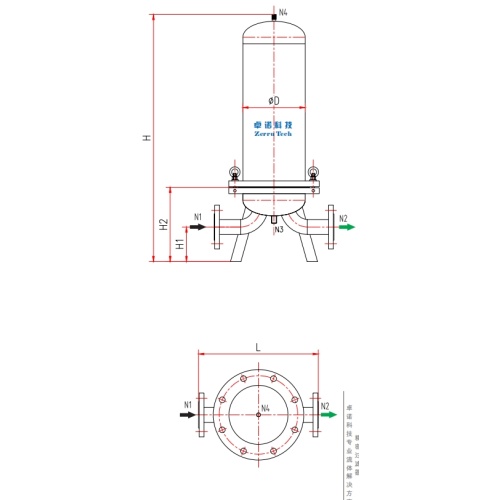

Filter size
| Rated water flow rateT/H | Filter configuration | Entrance and exit caliber | External dimensions(mm) | Reference weight（Kg） | ||||||
| Quantity (pieces) | legth in | DN | Connection method | D | L | H1 | H2 | H | ||
| 0.5 | 1 | 10" | 20 | 快开 eye-bolts 法兰 flange 螺纹 thread 承插 socket weld | 102 | 230 | 125 | 360 | 550 | 4.5 |
| 1 | 20" | 600 | 760 | 5.5 | ||||||
| 1.5 | 30" | 840 | 1000 | 6.5 | ||||||
| 1.5 | 3 | 10" | 25 | 184 | 300 | 130 | 360 | 600 | 10 | |
| 3 | 20" | 600 | 840 | 14 | ||||||
| 4.5 | 30" | 840 | 1080 | 18 | ||||||
| 2.5 | 5 | 10" | 50 | 234 | 450 | 410 | 730 | 19 | ||
| 5 | 20" | 650 | 970 | 23 | ||||||
| 7.5 | 30" | 890 | 1210 | 27 | ||||||
| 8 | 8 | 20" | 65 | 304 | 500 | 150 | 670 | 1050 | 35 | |
| 12 | 30" | 910 | 1290 | 40 | ||||||
| 6 | 40" | 1150 | 1530 | 45 | ||||||
| 12 | 12 | 20" | 80 | 354 | 550 | 200 | 685 | 1150 | 45 | |
| 18 | 30" | 925 | 1390 | 50 | ||||||
| 24 | 40" | 1165 | 1630 | 55 | ||||||
| 15 | 15 | 20" | 404 | 650 | 695 | 1170 | 60.5 | |||
| 22.5 | 30" | 935 | 1410 | 63.5 | ||||||
| 30 | 40" | 1175 | 1650 | 73.5 | ||||||
| 18 | 18 | 20" | 695 | 1170 | 60 | |||||
| 27 | 30" | 935 | 1410 | 65 | ||||||
| 36 | 40" | 1175 | 1650 | 70 | ||||||
| 21 | 21 | 20" | 454 | 700 | 710 | 1230 | 70 | |||
| 31.5 | 30" | 950 | 1470 | 76 | ||||||
| 42 | 40" | 1190 | 1710 | 82 | ||||||
| 25 | 25 | 20" | 100 | 506 | 750 | 720 | 1250 | 92 | ||
| 37.5 | 30" | 960 | 1490 | 100 | ||||||
| 50 | 40" | 1200 | 1730 | 108 | ||||||
| 30 | 30 | 20" | 720 | 1250 | 91 | |||||
| 45 | 30" | 960 | 1490 | 99 | ||||||
| 60 | 40" | 1200 | 1730 | 107 | ||||||
