Magnetic filters are essential components in various industrial processes, particularly where the removal of metal contaminants from liquids is crucial. The
Magnetic Filter With Carbon is a specialized type of magnetic
Filter that not only attracts and holds ferrous particles but also incorporates activated carbon for the adsorption of organic compounds and other impurities, providing a dual-function filtration solution.

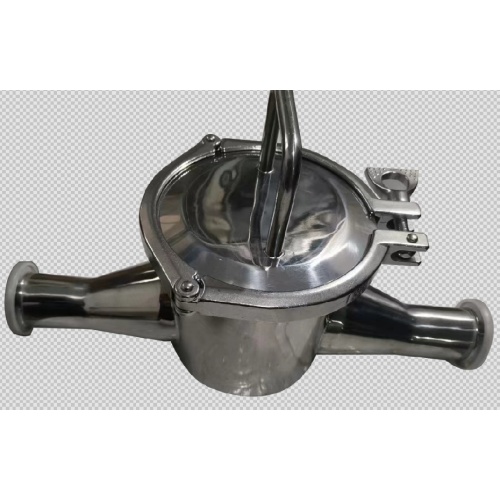

The Sanitary Magnetic Filter is designed with hygiene in mind, making it an ideal choice for applications in the food and beverage industry, as well as in pharmaceutical processes. These filters are constructed to meet rigorous sanitary standards, ensuring that they do not contribute any contaminants to the liquid being filtered and can be easily cleaned and sanitized.
For applications involving powders or fine particulates, the Powder Magnetic trap is a highly effective solution. It is designed to capture even the smallest metal particles from powders, protecting downstream processes and equipment from damage caused by metal contamination.
The Grate Magnets trap is another variation of magnetic filtration, often used in applications where larger debris or heavier metals need to be removed from liquid streams. The grating structure provides a larger surface area for the capture of contaminants, making it suitable for high-volume or high-debris environments.
In summary, these magnetic filtration solutions—ranging from the Magnetic Filter with Carbon for dual-function filtration, the Sanitary Magnetic Filter for hygienic applications, the Powder Magnetic trap for fine particulates, to the Grate Magnets trap for larger debris—offer a range of options to meet the specific needs of different industries and processes. Each is designed to enhance product quality, protect equipment, and ensure the safety of the final product.
Our high-strength magnetism is easy to clean
Embedded grid provides unparalleled horizontal pollutant removal, removing submicron iron and quasi magnetism
From the most demanding and challenging process environment.
This unit contains a high-strength magnetic grille that is easy to clean. The grille is produced around a food grade seal by a three cone locking nut that ensures uniform pressure.
It is common to install many units throughout the entire processing facility to ensure that pollutants are removed at the source of generation.
All dry powder and granular materials can be processed through this unit. Electrical safety interlocks can be installed on the grid to stop the process
Unexpectedly opened.
Benefifits
• Easy to clean
• Removes micron sized contaminants
• High collection capacity
• Reduces 'spark' risk
Performance
Magnetic Performance 7000, 9000, 10000
Performance Reading On tube surface
Magnet Grade N35 & N45 – Inspected and confifirmed via hysterograph
prior to use
Temperature
-20°C / +90°C
Pressure
+ / - 0.2 Bar
Suitability
Suitable Products Dry powders and granulates
Suitable Location Inlet / outlet points, pre- / post-silo and machinery points
Materials
Magnetic Material Rare Earth Neodymium Iron Boron - (NdFeb)
Housing
316 grade stainless steel
Tubing
316 grade stainless steel
Sealing
Self adhered white foam
Tri-cone Nuts
Stainless Steel
Surface Finish
Brushed internally / Polished externally to 0.6μm
Cleaning
When the unit requires cleaning, simply remove the outer grid securing tri-cone
locking nuts and remove the grid from the housing. Remove the central tri-cone
locking nut and separate the grid assembly allowing all attracted contamination to
simply fall away.
Options
• Stainless Steel Toggle Clamps • Larger sizes available
• Pharmaceutical specifification • Safety relay switches
• Metal Detectable Seal
• Higher temperature versions available
