Overview
Protection: Secondary
Feed type: gravity
Material type: NdFeb
Cleaning type: manual
Our high-strength magnetism is easy to clean
Embedded grid provides unparalleled horizontal pollutant removal, effectively capturing submicron iron and quasi magnetism from the most demanding and challenging process environments. The ZMC series

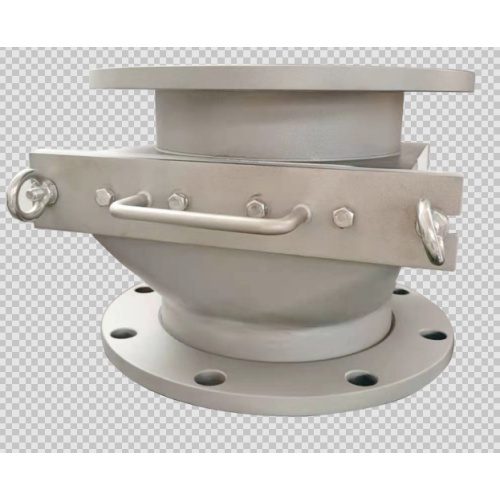

Drawer Magnetic Filter is a high-strength magnetic grille that is easy to clean, produced around a food grade seal by a three cone locking nut that ensures uniform pressure. This unit is designed to handle the rigors of industrial processes where the removal of fine magnetic particles is critical.

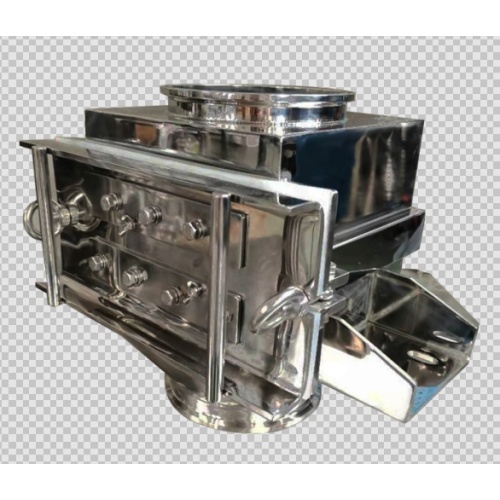

For applications requiring a multi-layer approach to magnetic separation, the Multi layer drawer Magnets offer a robust solution. These separators are suitable for free-flowing products and feature one or two rows of magnetic bars, staggered one above the other, ensuring that the product always passes very close to one or more magnets. This design is ideal for capturing a wide range of magnetic contaminants.
The
Drawer Magnetic Separator, including the Spring assist opening
Filter housing and Spring lift
Bag Filter housing, is commonly installed throughout the entire processing facility to ensure that pollutants are removed at the source of generation. These separators are designed to process all dry powder and granular materials, making them versatile for a variety of industrial applications.
To enhance safety and prevent unexpected operation, electrical safety interlocks can be installed on the grid to stop the process if it is unexpectedly opened. This feature adds an extra layer of security to the operation, ensuring that the process can be controlled and stopped when necessary.
In summary, the ZMC series drawer magnetic filter, Multi layer drawer Magnets, Drawer
Magnetic Separator, and Spring assist Bag Filter are all integral components in maintaining the cleanliness and safety of industrial processes. They provide a range of solutions for magnetic separation, from single to multi-layer configurations, ensuring that even the smallest particles are effectively removed to protect equipment and ensure product quality.
Benefifits
• Easy to clean
• Removes micron sized contaminants
• High collection capacity
• Reduces 'spark' risk
Performance
Magnetic Performance 7000, 9000, 10000
Performance Reading On tube surface
Magnet Grade N35 & N45 – Inspected and confifirmed via hysterograph
prior to use
Temperature
-20°C / +90°C
Pressure
+ / - 0.2 Bar
Suitability
Suitable Products Dry powders and granulates
Suitable Location Inlet / outlet points, pre- / post-silo and machinery points
Materials
Magnetic Material Rare Earth Neodymium Iron Boron - (NdFeb)
Housing
316 grade stainless steel
Tubing
316 grade stainless steel
Sealing
Self adhered white foam
Tri-cone Nuts
Stainless Steel
Surface Finish
Brushed internally / Polished externally to 0.6μm
Cleaning
When the unit requires cleaning, simply remove the outer grid securing tri-cone
locking nuts and remove the grid from the housing. Remove the central tri-cone
locking nut and separate the grid assembly allowing all attracted contamination to
simply fall away.
Options
• Stainless Steel Toggle Clamps • Larger sizes available
• Pharmaceutical specifification • Safety relay switches
• Metal Detectable Seal
• Higher temperature versions available
