Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: zerru

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

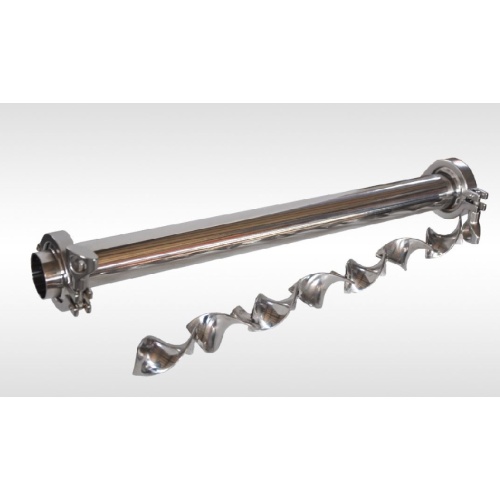

The SK type unit, a gas and gas Static Mixer, is composed of spiral plates twisted to the left and right of a single hole and welded together, creating a structure that promotes turbulent mixing. This design is particularly effective for achieving a non-uniformity coefficient of liquid-liquid and liquid-solid phases, which is σ X ≤ 1-5%.

The SK Static Mixer with Carbon steel is not only robust but also highly efficient in various industrial processes. It is suitable for mixing, reaction, extraction, absorption, injection molding, color matching, and heat transfer. This gas and gas static mixer is widely used across fields such as chemical, petroleum, pharmaceutical, food, fine chemical, plastic processing, environmental protection, synthetic fibers, mining, and metallurgy. The SK static mixer is especially suitable for high viscosity media with high flow rates and impurities, making it an ideal choice for applications where the viscosity is ≤ 10 CP.

The turbulent mixing provided by the SK static mixer ensures that the mixing process is thorough and efficient, which is crucial in industries where precise blending is required. Its carbon steel construction also offers durability and resistance to corrosion, making it a reliable option for long-term use in demanding environments.

Installation dimensions

型号 Model	Nominal diameter DN(mm)	⽔⼒直径 Hydraulic diameter dH(mm)	流量 flow Q(m³/h)
SK10-5	DN10	5	0.15~0.3
SK15-7.5	DN15	7.5	0.3~0.6
SK20-10	DN20	10	0.6~1.2
SK25-12.5	DN25	12.5	0.9~1.8
SK32-16	DN32	16	1.4~3.2
SK40-20	DN40	20	2.2~4.5
SK50-25	DN50	20	3.5~7.0
SK80-40	DN80	40	9.0~18
SK100-50	DN100	50	14~28
SK125-62	DN125	62	22~44
SK150-75	DN150	75	31~64
SK200-100	DN200	100	56~110
SK250-125	DN250	125	88~177
SK300-150	DN300	150	127~255
SK400-200	DN400	200	226~452
SK500-250	DN500	250	353~706
