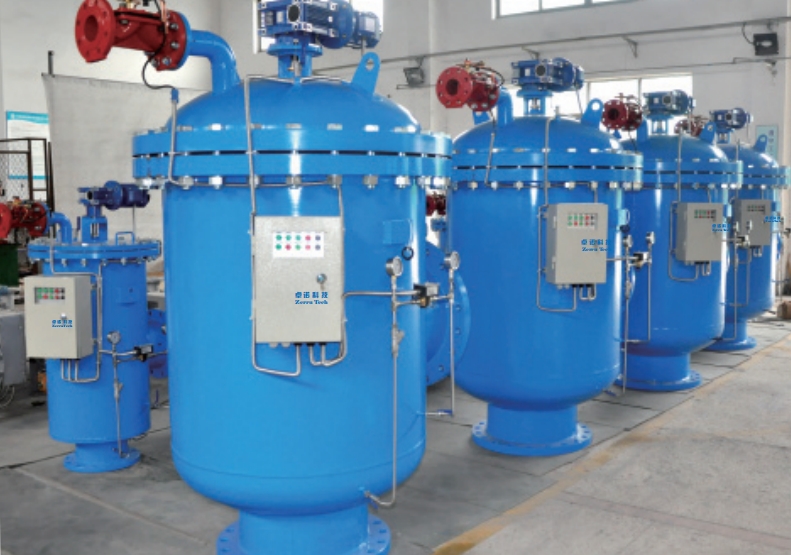

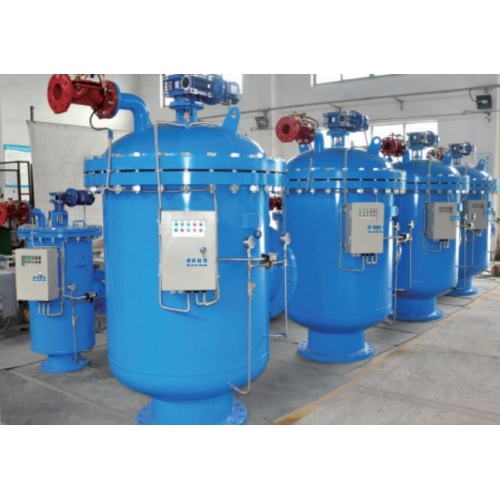

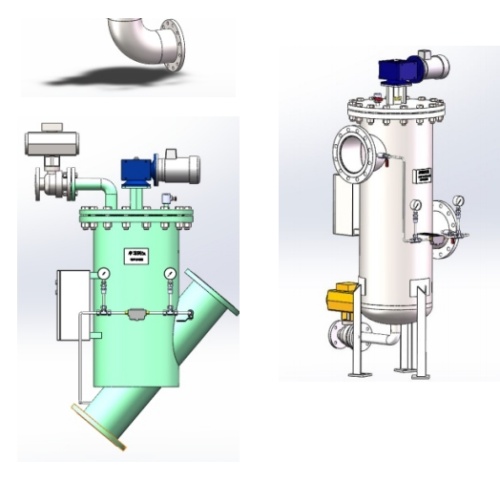

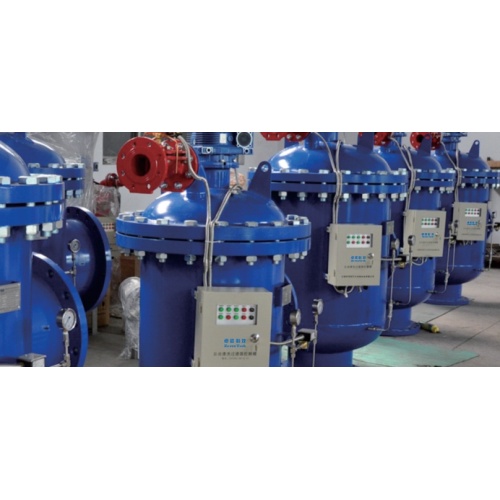

Bottom in side out brush type self-cleaning filter

The Zhuo Nuo ZSF series, a Bottom in side out brush type self-cleaning Filter, is a fully automatic self-cleaning filter suitable for harsh environments. This Stainless steel self-cleaning filter can be equipped with filters ranging from 3500 microns to 50 microns for different usage requirements. The self-cleaning process of the filter is initiated by a pressure differential switch or pressure sensor that constantly monitors the pressure difference between the inlet and outlet of the filter. Generally, the preset value of the pressure differential switch is 0.5 bar (7 psi).

The series self-cleaning filter, which also includes the Carbon steel self-cleaning filter, is suitable for pipeline selection from DN25 to DN900. This Brush Type Filter has the advantages of continuous fluid flow, easy maintenance, and reliable operation, making it widely used in all industries. The Bottom in side out brush type self-cleaning filter's design ensures that the cleaning process is thorough and efficient, contributing to its popularity in various sectors.

The Zhuo Nuo ZSF series filter, with its robust construction and advanced self-cleaning mechanism, stands out as a reliable choice for applications where maintaining fluid integrity is crucial. Whether you opt for the Stainless steel self-cleaning filter for its corrosion resistance or the Carbon steel self-cleaning filter for its cost-effectiveness, you can be assured of a high-performance filtration solution. The Brush Type Filter's design allows for effective removal of debris and contaminants, ensuring optimal filtration efficiency and minimal downtime for maintenance.

operational principle
When the pressure difference between the inlet and outlet of the filter reaches the preset value, the filter will start a self-cleaning process, which includes two steps: open the drain valve located on the upper end cover of the filter; The motor drives the two stainless steel brushes inside the main filter to rotate, and the impurities captured by the filter are brushed down by the steel brush and discharged from the drain valve. The entire cleaning process takes about 15-60 seconds to clean
The washing system does not cut off flow, and the entire operation process of the filter is controlled by a randomly equipped control box.

Introduction to technical parameters of self-cleaning filters

Cleaning parameters

Discharge outlet size: DN25, DN50, DN80
Cleaning time: 30-60S/time
Water consumption per cleaning: ≤ 5%
Standard filtration level
Wedge filter accuracy: 25,50,801001502003005005um
Precision of woven filter: 10,25,50,801001502003005005um

Control and power supply
Control power supply: 24V, 10-24V DC can be selected as needed
Motor power: 0.37~0.75Kw, 50Hz
Rated operating voltage: 220V/380V
Current: 1.5-2.0A
Filter material
Filter body: carbon steel (epoxy resin coating), stainless steel 304, 316L
Filter Element: stainless steel 304, 316L
Cleaning mechanism: stainless steel 304, 316L, POM
Blowdown valve: cast iron, epoxy resin coated, stainless steel 304, 316L

Sealing ring: synthetic rubber, PTFE

parameter

Note: The flow rate in the table is based on a filtration accuracy of 100 microns and the medium being water.

size
