Wleded pipeline Y-strainer-socket weld

Get Latest Price

Payment Type:

T/T,L/C

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: zerru

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: T/T,L/C

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

Y-shaped filters are an indispensable device in pipeline systems for conveying media. They are usually installed at the inlet of pressure reducing valves, relief valves, constant water level valves, or other equipment to remove impurities from the medium and protect the normal use of valves and equipment. The Welded pipeline Y-strainer-socket weld and Pipeline Y strainer socket weld are designed for critical media applications, offering a stable connection to the pipe through socket weld ends, which is ideal for high pressure and high temperature services。

For applications requiring high pressure resistance, the High Pressure Y Strainer is engineered to withstand the demands of such environments. Constructed from materials like stainless steel, these strainers provide durability and resistance to corrosion, making them suitable for a variety of media types。

The Stainless steel Y strainer is a popular choice for its corrosion resistance and strength, particularly in food processing and pharmaceutical applications where hygiene is a priority. These strainers can be supplied with various screen materials to meet specific media requirements, and they are designed for both liquid and steam services。

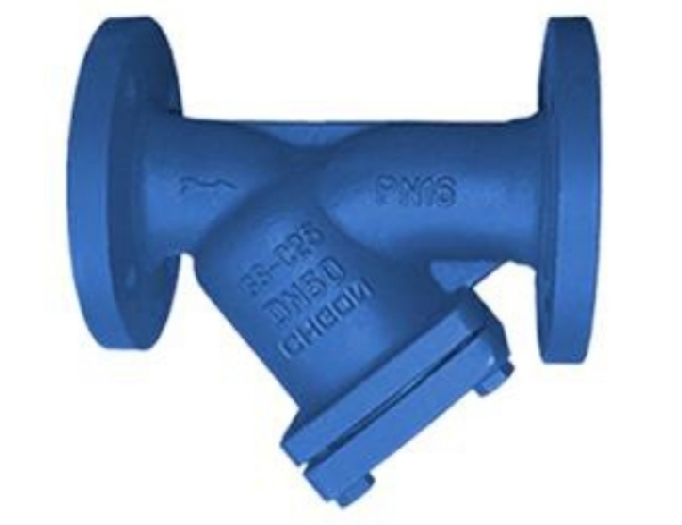

Lastly, the Cast Iron Y strainer and Cast pipeline Y-strainer Flange connection are robust options for applications where a cost-effective solution is needed. These strainers are typically used in systems where the risk of particle contamination is present, and they provide a reliable means of filtration to safeguard downstream equipment。

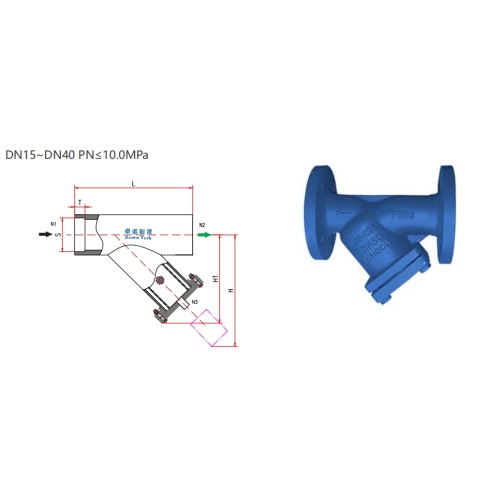

20240607140425 Png

Nominal diameter DN	S	L	H1(mm)	H ( mm)	t ( mm)	N3(in)	Reference weight (kg)	Effective filtration area(m²)	multiple
15	22. 5	130	169	250	10	R3/8	5.4	0.0023	13
20	27. 5	130	179	250	13	R3/8	5.9	0.0025	8
25	34. 5	140	182	250	13	R3/8	6.7	0.0027	5. 5
32	42. 5	160	209	300	13	R3/8	10.2	0.0042	5
40	48. 5	170	217	300	13	R3/8	13	0.0043	3.4

Note:
The numerator in the table represents the size and weight of flange connection types
The denominator is the size and weight of the butt welding connection type
The reference weight is PN2.5 grade weight
