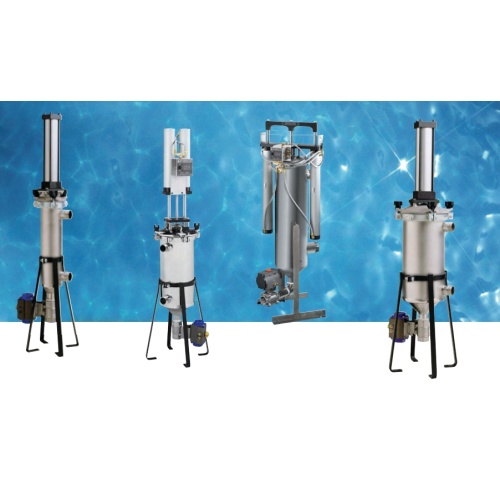

Cylinder scraper self-cleaning filter

The G03 series scraper filter is a new generation of mechanical self-cleaning filters independently developed by Zhuono, which has reached the world's leading technological level. Unlike recoil type self-cleaning water filters, scraper filters are not only used for water filtration, but are also widely used for self-cleaning filtration of viscous materials such as solvents, acid-base liquids, polymers, and coatings. They have higher efficiency, an accuracy range of 30-1500 microns, and can handle liquids with viscosity up to 800000 CP. They are used in industries such as water treatment, petrochemicals, metallurgy, power, fine chemicals, coatings, inks, papermaking, food and beverage, pharmaceuticals, and metal processing.
The G03 series scraper filter is fully automatic in operation, with high filtration accuracy and stable and reliable performance. It is a cost-effective choice to replace traditional manual filters or the use of discarded filter media filters. In many fields, it can replace traditional core filters, bag filters, basket filters, vibrating screen filters, etc.

Comprehensive parameters
Working flow rate: 20-5000m ³/H
Please contact the manufacturer for details. Different water quality and accuracy may result in differences in corresponding flow rates. The minimum working pressure is 2Kg (0.2/30psiMPa):
If the working pressure is too low, a booster pump can be installed at the discharge outlet
Maximum working pressure: 10Kg (1.0MPa/150psi), high-pressure type can be customized according to customer requirements
Filter area 3000m ²~20000m ²:
Inlet and outlet pipe diameter: DN25, DN32,DN40,DN50,DN65,DN80,DN100,
DN125,DN150,DN200,DN250,DN300,DN350,DN400,DN450, DN500,DN600,DN800,DN900
Maximum operating temperature:
Please specify if the temperature is higher than this

operational principle

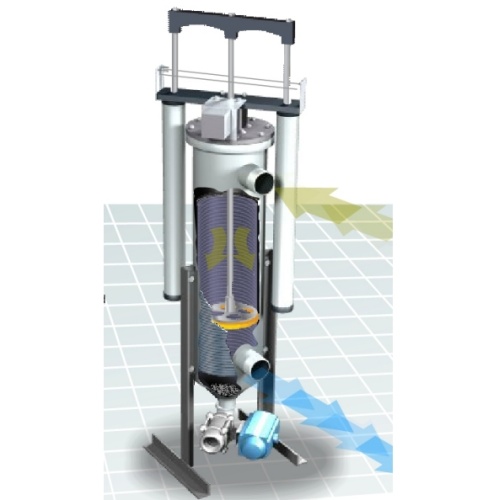

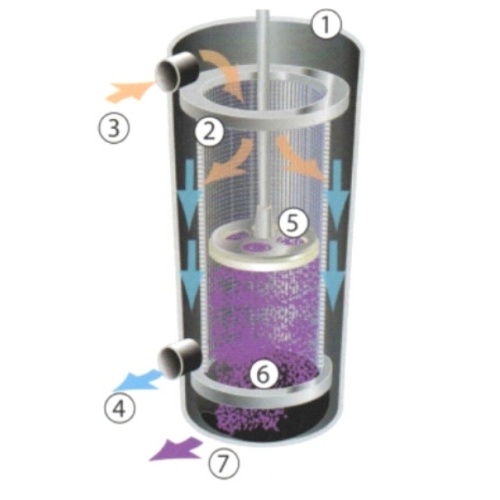

The working principle of the Zerru mechanical cleaning filter is very simple: a Filter Screen (2) is installed in a cylindrical stainless steel shell (1). When the unfiltered liquid enters the shell through the inlet (3). Solid impurities are filtered out and deposited on the inner surface of the filter screen. Finally, the filtrate flows out from outlet (4). When the filter needs to be cleaned (depending on time, pressure difference, or manual selection), a spring tightened cleaning plate continuously scrapes the inner surface of the filter back and forth to remove solid impurities that have accumulated. But when the debris separates from the gaps in the filter screen, the cleaning plate sends the dirt into the bottom of the housing (6) and discharges the filter through the flow channel (7).

Technical characteristics
The permanent medium and permanent filter medium of the disc cleaning technology are adopted, and the disc cleaning technology is adopted;
Due to the elimination or reduction of primary filter bags and filters, the labor cost of inventory handling and landfill cost can be reduced;
Reduce product loss and thoroughly remove dirt;
Reduce or eliminate the personal expectations of operators to achieve the goal of safe operations;
No one needs to spend time on maintenance and upkeep, which can ensure 100% normal working time; Compact design can reduce capital costs and is suitable for most installation environments;
Rust steel filters can be selected from a wedge-shaped wire with a diameter of 15 microns to a 1/4 inch punching hole to meet the full filtration requirements;
The material of the scraping disc includes ultra-high molecular weight polyethylene, polyurethane, polytetrafluoroethylene or polyvinylidene fluoride; Low investment cost for processing water and similar liquids

application area
The main markets for DCF mechanical cleaning filters are paper coatings, PCC/GCC mud
Phenolic resin, detergent, oil-based grease
Ethanol addition, hot oil
CIP fluid (sodium hydroxide)
Starch and lime mortar
Adhesives, nutritional products, machine added coolant
Paint and ink
Chocolate, oil, grease

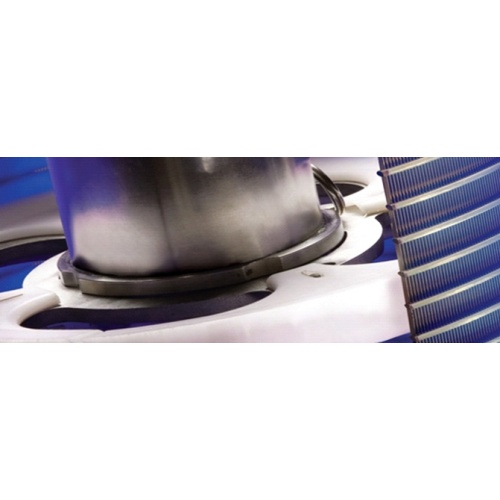

The unique circular cleaning disc design ensures close contact between the cleaning element and the filter to evenly and thoroughly clean the filter.
