Straight flow T strainer

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: zerru

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

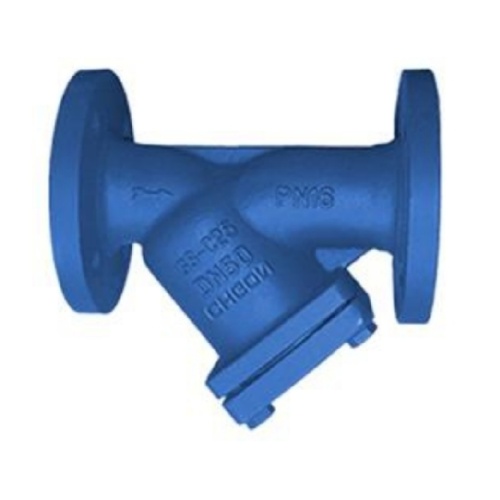

Y-strainer is an indispensable device for the pipeline system of conveying medium. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment.

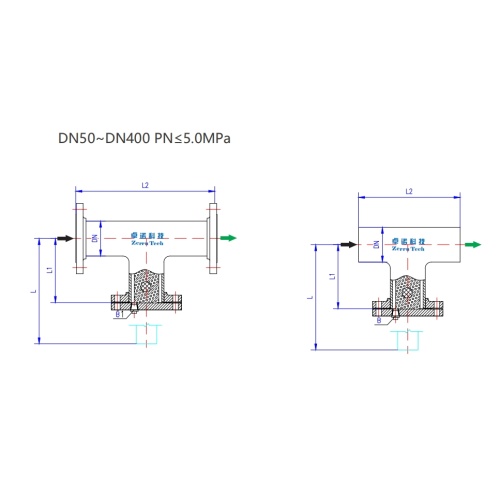

型号 Type	PN2.0					PN5.0					B (in)	Effective filtration area(m²)	multiple
型号 Type	DN	L1( mm)	L2/L3(mm)	L ( mm)	Reference weight (kg)	DN	L1( mm)	L2/L3(mm)	L ( mm)	Reference weight (kg)	B (in)	Effective filtration area(m²)	multiple
ZR ZR TⅢ TⅣ（Flange connection）	50	250	149/235	281/450	13.7/13.8	50	268	158/235	298/450	18.1/18.8	R1/2	0.0028	3.3
	65	292	170/265	325/510	19.4/20.9	65	304	170/265	33/510	27.5/28.6	R1/2	0.0042	3
	80	312	181/300	352/570	23.9/25.2	80	330	196/300	370/570	36/37.4	R1/2	0.0055	2.7
	100	362	267/355	412/700	35.9/37.7	100	382	225/355	432/700	57.7/59	R3/4	0.0088	2.4
	150	464	260/455	539/900	60/63.8	150	482	280/445	557/900	103/106.5	R3/4	0.017	2.2
	200	560	311/510	660/1030	105.5/115	200	578	332/510	678/1030	153/177.6	R3/4	0.0355	2.2
	250	636	350/590	761/1190	171/176.8	250	666	383/590	791/1190	259/276.4	R3/4	0.0529	2
	300	736	400/675	886/1390	236/256.4	300	768	437/675	918/1390	273/342.4	R3/4	0.0686	2
	350	812	441/740	955/1550	321/352	350	844	476/740	990/1550	483/511	R3/4	0.07/0.01	1.3
	400	864	469/795	1025/1680	427/472	400	902	509/795	1060/1680	619/665	R3/4	0.08/0.15	1.3
Z RT Ⅲ Z RTⅣ （Butt welding connection）	50	128	149/235	450	7. 1*	50	128	149/235	450	9.8*	R1/2	0.0028	2
	65	152	170/265	510	11.7*	65	152	170/265	510	16.9*	R1/2	0.0042	1.8
	80	172	181/300	570	13.7*	80	172	181/300	570	21.5*	R1/2	0.0055	1.6
	100	210	267/355	700	21.4*	100	210	267/355	700	33*	R3/4	0.0086	1.6
	150	286	260/455	900	33.9*	150	286	260/455	900	61*	R3/4	0.017	1.5
	200	356	311/510	1030	79*	200	356	311/510	1030	106.7*	R3/4	0.036	1.5
	250	432	350/590	1190	119*	250	432	350/590	1190	158*	R3/4	0.053	1.4
	300	508	400/675	1390	162*	300	508	400/675	1390	211.5*	R3/4	0.069	1.3
	350	558	441/740	1025/1680	209/240	350	558	476/740	9901550	296/324	R3/4	0.07/0.1	1.1
	400	610	469/795	1025/1680	284/382	400	610	509/795	1060/1680	380/419	R3/4	0.08/0.15	1.2
