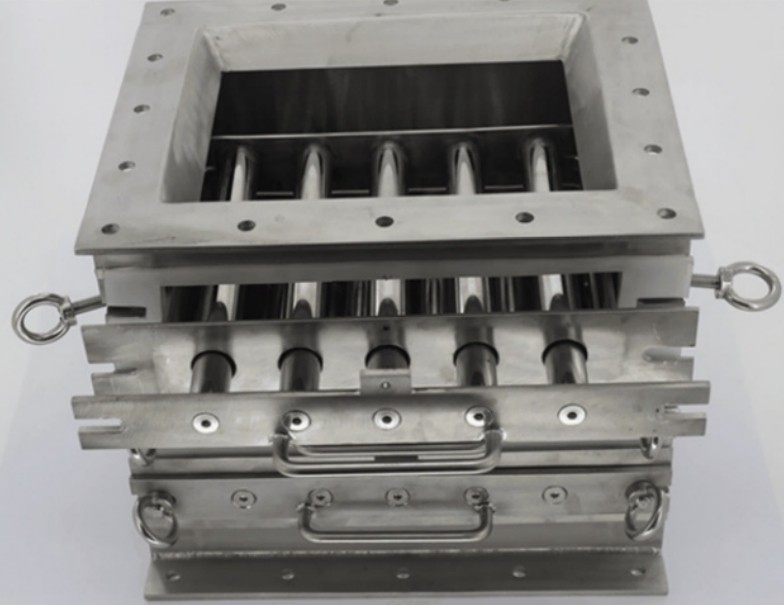

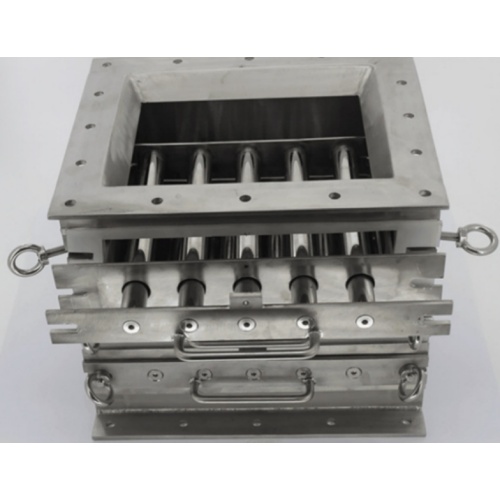

Embedded grid provides unparalleled horizontal pollutant removal, removing submicron iron and quasi magnetism from the most demanding and challenging process environment. The ZMC-S Magnetic easy clean
Filter -Single is a highly efficient solution for this purpose. This unit contains a high-strength magnetic grille that is easy to clean, which is also known as the easy clean Grate Magnets. The grille is produced around a food grade seal by a three cone locking nut that ensures uniform pressure, a feature common in the Easy cleaning Rotary Magnets and automatic cleaning Rotary Magnets。
It is common to install many units throughout the entire processing facility to ensure that pollutants are removed at the source of generation. All dry powder and granular materials can be processed through this unit. Electrical safety interlocks can be installed on the grid to stop the process unexpectedly opened, which is a standard feature in the ZMC-S Magnetic easy clean filter -Single and other similar models like the Easy cleaning Rotary Magnets。
Benefifits
• Easy to clean
• Removes micron sized contaminants
• High collection capacity
• Reduces 'spark' risk
Performance
Magnetic Performance 7000, 9000, 10000
Performance Reading On tube surface
Magnet Grade N35 & N45 – Inspected and confifirmed via hysterograph
prior to use
Temperature
-20°C / +90°C
Pressure
+ / - 0.2 Bar
Suitability
Suitable Products Dry powders and granulates
Suitable Location Inlet / outlet points, pre- / post-silo and machinery points
Materials
Magnetic Material Rare Earth Neodymium Iron Boron - (NdFeb)
Housing
316 grade stainless steel
Tubing
316 grade stainless steel
Sealing
Self adhered white foam
Tri-cone Nuts
Stainless Steel
Surface Finish
Brushed internally / Polished externally to 0.6μm
Cleaning

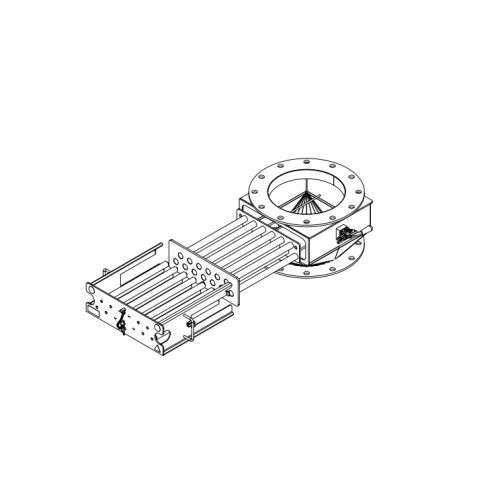

When the unit requires cleaning, simply remove the outer grid securing tri-cone
locking nuts and remove the grid from the housing. Remove the central tri-cone
locking nut and separate the grid assembly allowing all attracted contamination to
simply fall away.
Options
• Stainless Steel Toggle Clamps • Larger sizes available
• Pharmaceutical specifification • Safety relay switches
• Metal Detectable Seal
• Higher temperature versions available
