Wuxi Zerru Technology Co., Ltd
Brand: zerru
Transportation: Ocean,Land,Air
Payment Type: T/T,L/C
Incoterm: FOB,CFR,CIF
Y-shaped filters are an indispensable device in pipeline systems for conveying media. They are usually installed at the inlet of pressure reducing valves, relief valves, constant water level valves, or other equipment to remove impurities from the medium and protect the normal use of valves and equipment.

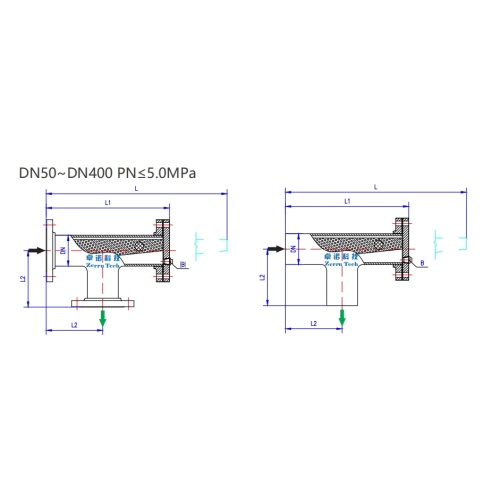

| 型号 Type | DN | L1( mm) | L2/L3(mm) | L ( mm) | B (in) | Reference weight (kg) | Effective filtration area(m²) | multiple |
| Z RT Ⅰ Z RT（Flange connection） | 50 | 277/292 | 128/ 134 | 457/472 | R1/2 | 13.3/ 14.8 | 0.0066 | 3.3 |
| 65 | 316/331 | 146/ 152 | 530/ 545 | R1/2 | 17/ 18.7 | 0.0101 | 3 | |
| 80 | 337/360 | 156/ 165 | 568/ 591 | R1/2 | 22.9/23.4 | 0.0138 | 2.7 | |
| 100 | 388/416 | 181/ 191 | 648/676 | R1/2 | 37/38 | 0.0187 | 2.4 | |
| 150 | 491/ 521 | 232/241 | 842/871 | R3/4 | 56.4/ 59.3 | 0.0388 | 2.2 | |
| 200 | 591/621 | 280/289 | 1031/ 1062 | R3/4 | 95/ 154.3 | 0.063 | 2.2 | |
| 250 | 668/716 | 318/333 | 1169/ 1216 | R3/4 | 165/243 | 0.096 | 2 | |
| 300 | 768/821 | 368/384 | 1370/ 1421 | R3/4 | 258.3/345 | 0. 134 | 2 | |
| 350 | 847/898 | 406/422 | 1585/ 1650 | R3/4 | 327/489 | 0. 124 | 1.3 | |
| 400 | 901/960 | 432/451 | 1690/ 1765 | R3/4 | 435/627 | 0. 162 | 1.3 | |
| Z RT Ⅰ Z RT Ⅱ （Butt welding connection） | 50 | 213/222 | 64 | 393/402 | R1/2 | 8.4/ 10.2 | 0.0039 | 2 |
| 65 | 246/255 | 76 | 460/469 | R1/2 | 10.2/ 15.8 | 0.0059 | 1.8 | |
| 80 | 267/281 | 86 | 498/ 512 | R1/2 | 12.4/20.3 | 0.0081 | 1.6 | |
| 100 | 312/330 | 105 | 572/ 590 | R1/2 | 20/31.5 | 0.013 | 1.6 | |
| 150 | 402/423 | 143 | 753/773 | R3/4 | 33.6/ 57.3 | 0.026 | 1. 5 | |
| 200 | 489/ 510 | 178 | 929/951 | R3/4 | 61.5/97.5 | 0.046 | 1. 5 | |
| 250 | 566/ 599 | 216 | 1067/ 1099 | R3/4 | 101/ 142.3 | 0.071 | 1.4 | |
| 300 | 654/691 | 254 | 1256/ 1291 | R3/4 | 141/222 | 0.094 | 1.3 | |
| 350 | 720/755 | 279 | 1460/ 1510 | R3/4 | 211/299 | 0. 102 | 1. 1 | |
| 400 | 774/814 | 305 | 1565/ 1620 | R3/4 | 284/382 | 0. 144 | 1.2 | |
| Z RT Ⅰ L Z RT Ⅱ L （Butt welding connection） | 50 | 295/222 | 64( 146) | 550 | R1/2 | 7.4/ 10.2 | 0.0066 | 3.3 |
| 65 | 324/255 | 76( 154) | 618 | R1/2 | 11/ 16 | 0.0101 | 3 | |
| 80 | 357/281 | 86( 175) | 674 | R1/2 | 13/20.3 | 0.0138 | 2.7 | |
| 100 | 422/330 | 105(215) | 784 | R1/2 | 20.6/31.5 | 0.019 | 2.4 | |
| 150 | 543/423 | 143(283) | 966 | R3/4 | 35.4/ 57.3 | 0.04 | 2.2 | |
| 200 | 691/ 510 | 178( 380) | 1322 | R3/4 | 67.7/97.5 | 0.07 | 2.2 | |
| 250 | 835/ 599 | 216(485) | 1610 | R3/4 | 114.8/ 142.3 | 0. 1 12 | 2.2 | |
| 300 | 966/691 | 254( 564) | 1870 | R3/4 | 157.6/221.7 | 0. 158 | 2.2 | |
| 350 | 1091/ 1126 | 279(650) | 1791/ 1851 | R3/4 | 346/331 | 0. 167 | 1.7 | |
| 400 | 1189/ 1229 | 305(720) | 1939/2017 | R3/4 | 335/435 | 0.227 | 1.8 |
Product Categories : Filter > Precision Filter
