ZSX-X02 suction scanning self-cleaning filter

ZSX-X02 suction scanning self-cleaning Filter
The ZSX-X02 series Automatic Cleaning Filter has higher filtration accuracy and minimal cleaning loss, providing the safest guarantee for industrial systems.



Operational principle
When the pressure difference inside and outside the filter reaches the preset value or the timed cleaning switch reaches the set time, the system begins the self-cleaning process.

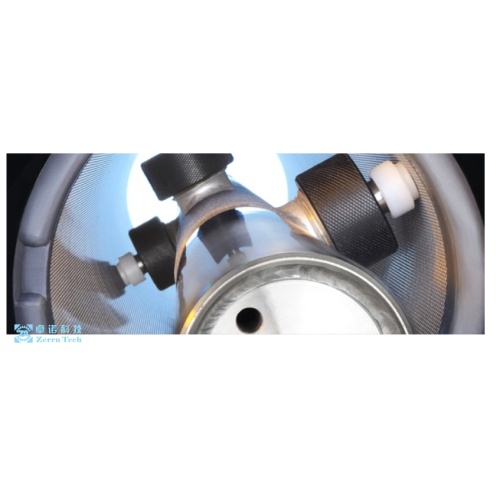

The entire cleaning process is completed by a suction scanner, which performs a spiral scanning motion to remove impurities from the inner surface of the filter and discharge them through a drain valve. The scanner is driven by a bidirectional electric motor through a screw.
The opening of the sewage valve is controlled by a two position three-way solenoid valve, and the entire sewage process lasts for about 30 seconds without interruption of the system flow.

Product advantages
The effective filtration area of the standard filter with a large filtration area and low pressure loss is 7-40 times that of the inlet area;
This model is equipped with a manual coarse grid, which is particularly suitable for industrial applications such as side flow and full cooling tower filtration. The motor reducer model can be adjusted to improve efficiency by adjusting the speed or cleaning mechanism
The suction scanning filter contains a unique multi-layer all stainless steel filter, with a filtration accuracy of up to 10 microns; The Zhuo Nuo design team has developed the most effective method to effectively combine material strength, filtration capacity, and cleaning efficiency by combining selected filter weaving methods and structural patterns, in order to achieve a more efficient filtration result. This cutting-edge and precise filter ensures that the filter cake can be quickly and thoroughly cleaned. Zhuo Nuo suction scanning technology consumes less than 1% of the total amount of water. It is the lowest discharge water consumption rate among all self-cleaning modes (this ratio may be adjusted according to specific application situations).

Comprehensive parameters
Working flow rate: 20~1000m ³/H
Please contact the manufacturer for details. Different water quality and accuracy may result in differences in corresponding flow rates. The minimum working pressure is 2Kg (2bar);
Customizable high-voltage type according to customer requirements
Maximum working temperature: 90 ° C
Please specify if the temperature is higher than this
Backwashing time: 20-30 seconds (can be freely adjusted according to different working conditions)
Backwashing water consumption: 100-200L/time
Filtering accuracy: 10-3000 microns
Drive mode: Electric optional functions:
Remote control and monitoring

Application area

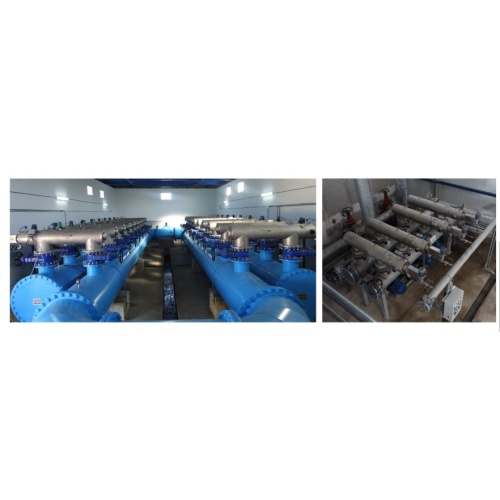

Cooling tower and HVAC well water filtration
Cooling water and nozzle protection irrigation system for steel industry
