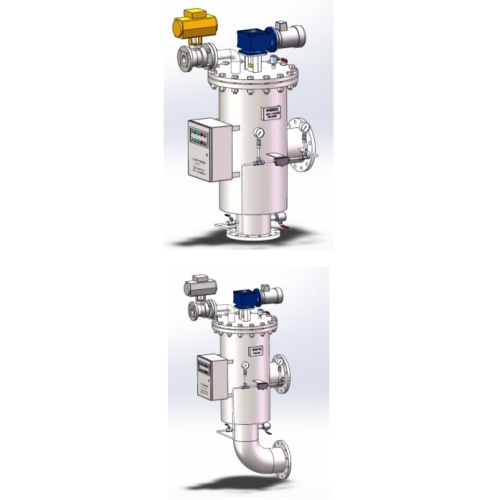

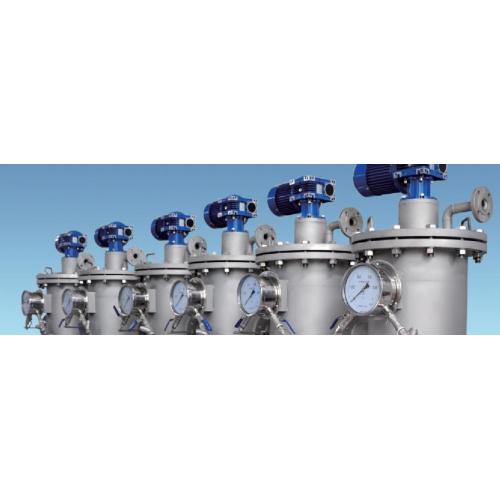

Brush type self-cleaning filter

The Zhuo Nuo ZSF series is a fully automatic self-cleaning Filter suitable for harsh environments, and can be equipped with filters ranging from 3500 microns to 50 microns for different usage requirements. This series includes the Brush type self-cleaning filter, Self-cleaning filter with brush, Self-cleaning brush filter, and Auto self cleaning filter, all designed to meet various filtration needs in different industrial settings.

The self-cleaning process of the filter is initiated by a pressure differential switch or pressure sensor that constantly monitors the pressure difference between the inlet and outlet of the filter. When the pressure differential reaches the preset value of 0.5 bar (7 psi), the self-cleaning cycle is automatically activated. This feature is common across all types of filters in the ZSF series, including the Auto self cleaning filter and Self-cleaning brush filter, ensuring optimal performance and minimal downtime.

The Brush type self-cleaning filter and Self-cleaning filter with brush utilize brushes to dislodge and remove accumulated debris from the Filter Screen, maintaining flow rates and extending the life of the filter elements. The Self-cleaning brush filter, in particular, is designed for applications where high levels of particulate matter are expected, providing efficient cleaning without interrupting the flow of the process fluid.

The series self-cleaning filter is suitable for pipeline selection from DN25 to DN900, making it versatile for a wide range of applications. This filter has the advantages of continuous fluid flow, easy maintenance, and reliable operation, so it is widely used in all industries. The inclusion of the Auto self cleaning filter in the series further enhances its appeal, as it provides a hands-off solution to filtration needs, ensuring that the filtration process remains uninterrupted and efficient.

In summary, the Zhuo Nuo ZSF series offers a comprehensive range of self-cleaning filters, including the Brush type self-cleaning filter, Self-cleaning filter with brush, Self-cleaning brush filter, and Auto self cleaning filter, all designed to provide continuous, reliable, and efficient filtration in even the most demanding environments.

operational principle

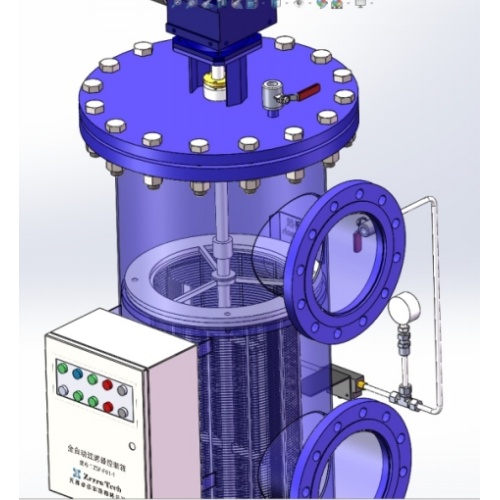

When the pressure difference between the inlet and outlet of the filter reaches the preset value, the filter will start a self-cleaning process, which includes two steps: open the drain valve located on the upper end cover of the filter; The motor drives the two stainless steel brushes inside the main filter to rotate, and the impurities captured by the filter are brushed down by the steel brush and discharged from the drain valve. The entire cleaning process takes about 15-60 seconds to clean
The washing system does not cut off flow, and the entire operation process of the filter is controlled by a randomly equipped control box.

Comprehensive parameters

Working flow rate: 20-5000m ³/H
Please contact the manufacturer for details. Different water quality and accuracy may result in differences in corresponding flow rates. The minimum working pressure is 2Kg (0.2/30psiMPa):
If the working pressure is too low, a booster pump can be installed at the discharge outlet
Maximum working pressure: 10Kg (1.0MPa/150psi), high-pressure type can be customized according to customer requirements
Filter area 3000m ²~20000m ²:
Inlet and outlet pipe diameter: DN25, DN32,DN40,DN50,DN65,DN80,DN100,
DN125,DN150,DN200,DN250,DN300,DN350,DN400,DN450, DN500,DN600,DN800,DN900
Maximum operating temperature:
Please specify if the temperature is higher than this

Introduction to technical parameters of self-cleaning filters

Cleaning parameters

Discharge outlet size: DN25, DN50, DN80
Cleaning time: 30-60S/time
Water consumption per cleaning: ≤ 5%
Standard filtration level
Wedge filter accuracy: 25,50,801001502003005005um
Precision of woven filter: 10,25,50,801001502003005005um

Control and power supply
Control power supply: 24V, 10-24V DC can be selected as needed
Motor power: 0.37~0.75Kw, 50Hz
Rated operating voltage: 220V/380V
Current: 1.5-2.0A

Filter material
Filter body: carbon steel (epoxy resin coating), stainless steel 304, 316L
Filter Element: stainless steel 304, 316L
Cleaning mechanism: stainless steel 304, 316L, POM
Blowdown valve: cast iron, epoxy resin coated, stainless steel 304, 316L
Sealing ring: synthetic rubber, PTFE
