Our high-strength magnetism is easy to clean
Embedded grid provides unparalleled horizontal pollutant removal, removing submicron iron and quasi magnetism
From the most demanding and challenging process environment.

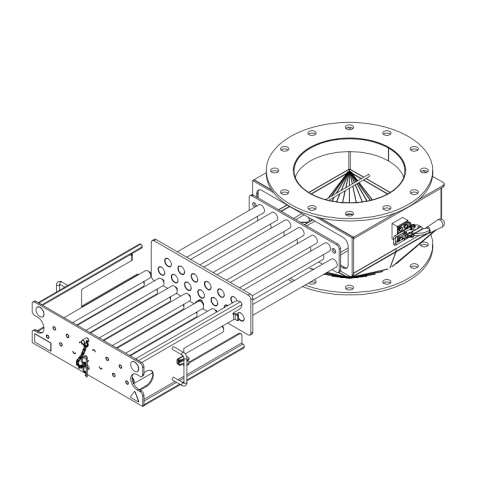

This unit contains a high-strength magnetic grille that is easy to clean. The grille is produced around a food grade seal by a three cone locking nut that ensures uniform pressure.
It is common to install many units throughout the entire processing facility to ensure that pollutants are removed at the source of generation.
All dry powder and granular materials can be processed through this unit. Electrical safety interlocks can be installed on the grid to stop the process
Unexpectedly opened.
The ZMC-D Magnetic easy clean Filter -Triple is a state-of-the-art filtration system designed for high-efficiency removal of pollutants in demanding industrial processes. This advanced system features a triple-stage magnetic filtration, providing unparalleled horizontal pollutant removal, capable of capturing submicron iron and quasi-magnetic particles that other systems might miss.
The ZMC-D Triple system is part of the Semi-automatic Magnetic Separator family, offering a balance between manual operation and automated convenience. It is equipped with an easy clean grid magnetic separator, which ensures that the high-strength magnetic grille can be cleaned with ease. This grille is produced around a food-grade seal, secured by a three-cone locking nut that ensures uniform pressure across the surface, contributing to the longevity and effectiveness of the filtration process.
The Easy clean grid magnetic separator in the ZMC-D -Triple system is designed for quick and efficient cleaning, reducing downtime and maintenance efforts. This feature is particularly beneficial in industries where continuous operation is crucial, and where the presence of even trace amounts of contaminants can have significant consequences.
Overall, the ZMC-D Magnetic easy clean filter -Triple, with its Semi-automatic magnetic separator capabilities and Easy clean grid magnetic separator design, stands as a robust solution for maintaining cleanliness and purity in a variety of industrial applications.
Benefifits
• Easy to clean
• Removes micron sized contaminants
• High collection capacity
• Reduces 'spark' risk
Performance
Magnetic Performance 7000, 9000, 10000
Performance Reading On tube surface
Magnet Grade N35 & N45 – Inspected and confifirmed via hysterograph
prior to use
Temperature
-20°C / +90°C
Pressure
+ / - 0.2 Bar
Suitability
Suitable Products Dry powders and granulates
Suitable Location Inlet / outlet points, pre- / post-silo and machinery points
Materials
Magnetic Material Rare Earth Neodymium Iron Boron - (NdFeb)
Housing
316 grade stainless steel
Tubing
316 grade stainless steel
Sealing
Self adhered white foam
Tri-cone Nuts
Stainless Steel
Surface Finish
Brushed internally / Polished externally to 0.6μm
Cleaning
When the unit requires cleaning, simply remove the outer grid securing tri-cone
locking nuts and remove the grid from the housing. Remove the central tri-cone
locking nut and separate the grid assembly allowing all attracted contamination to
simply fall away.
Options
• Stainless Steel Toggle Clamps • Larger sizes available
• Pharmaceutical specifification • Safety relay switches
• Metal Detectable Seal
• Higher temperature versions available
